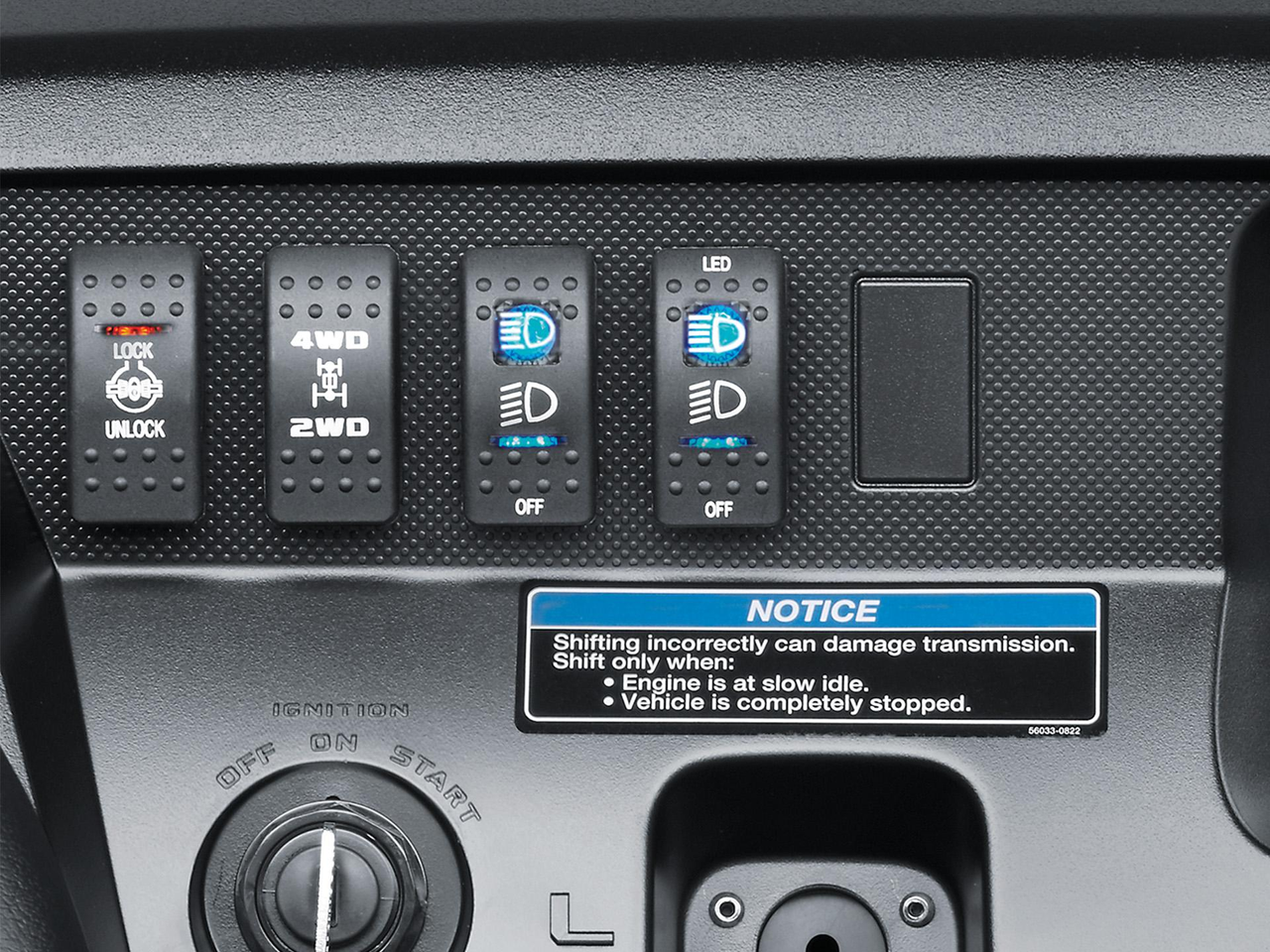

Electrically Selectable 4WD & Rear Differential Lock
Electrically “selectable” 2WD/4WD and dualmode rear differential system allow easy changing between drive systems to suit changing terrain and applications.

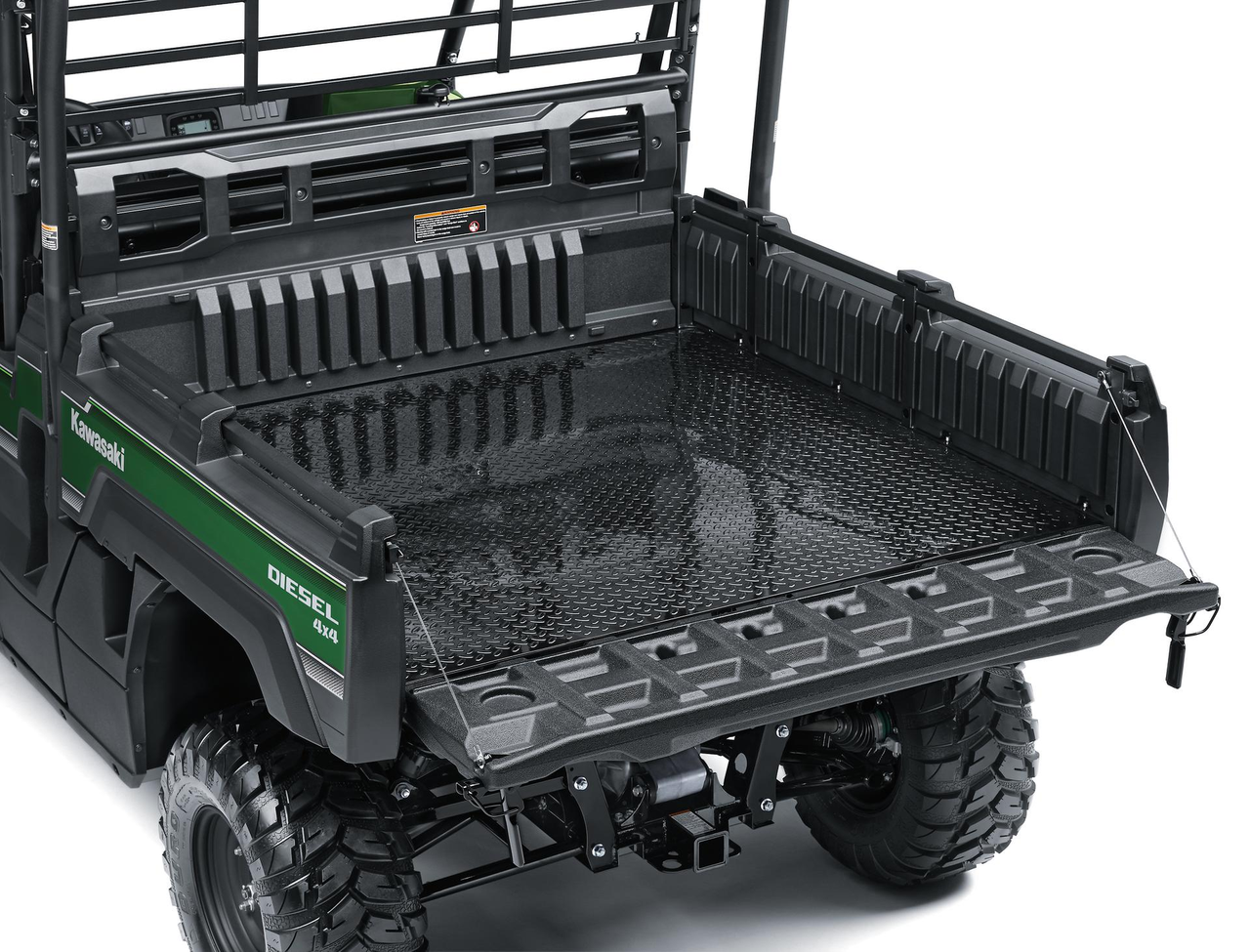

Largest Cargo Bed in Class
If cargo capacity is your greatest priority, then the MULE PRO-DX is your partner of choice. Its cargo bed is the largest in its class, ensuring you can carry more, and carry it more easily.

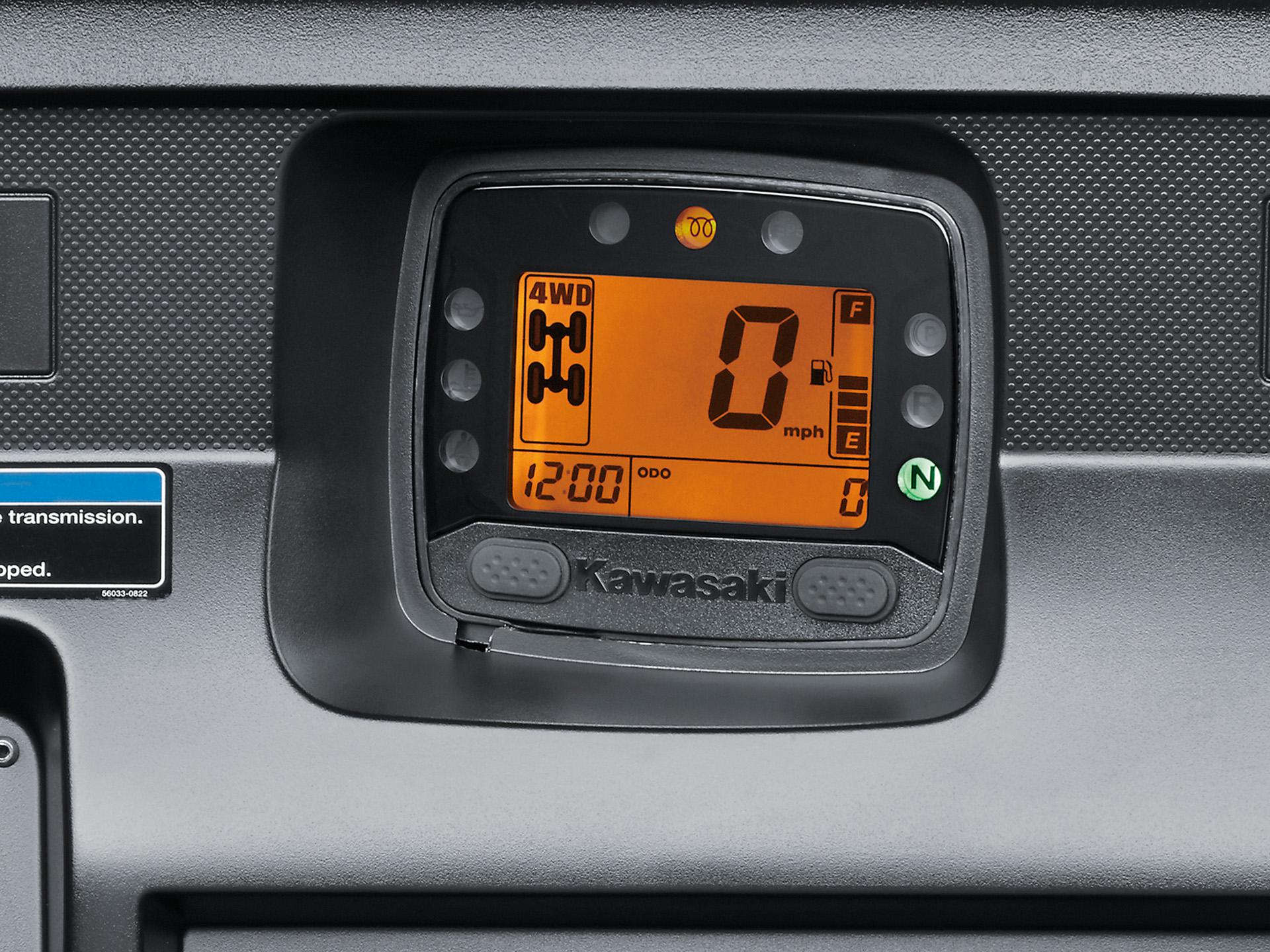

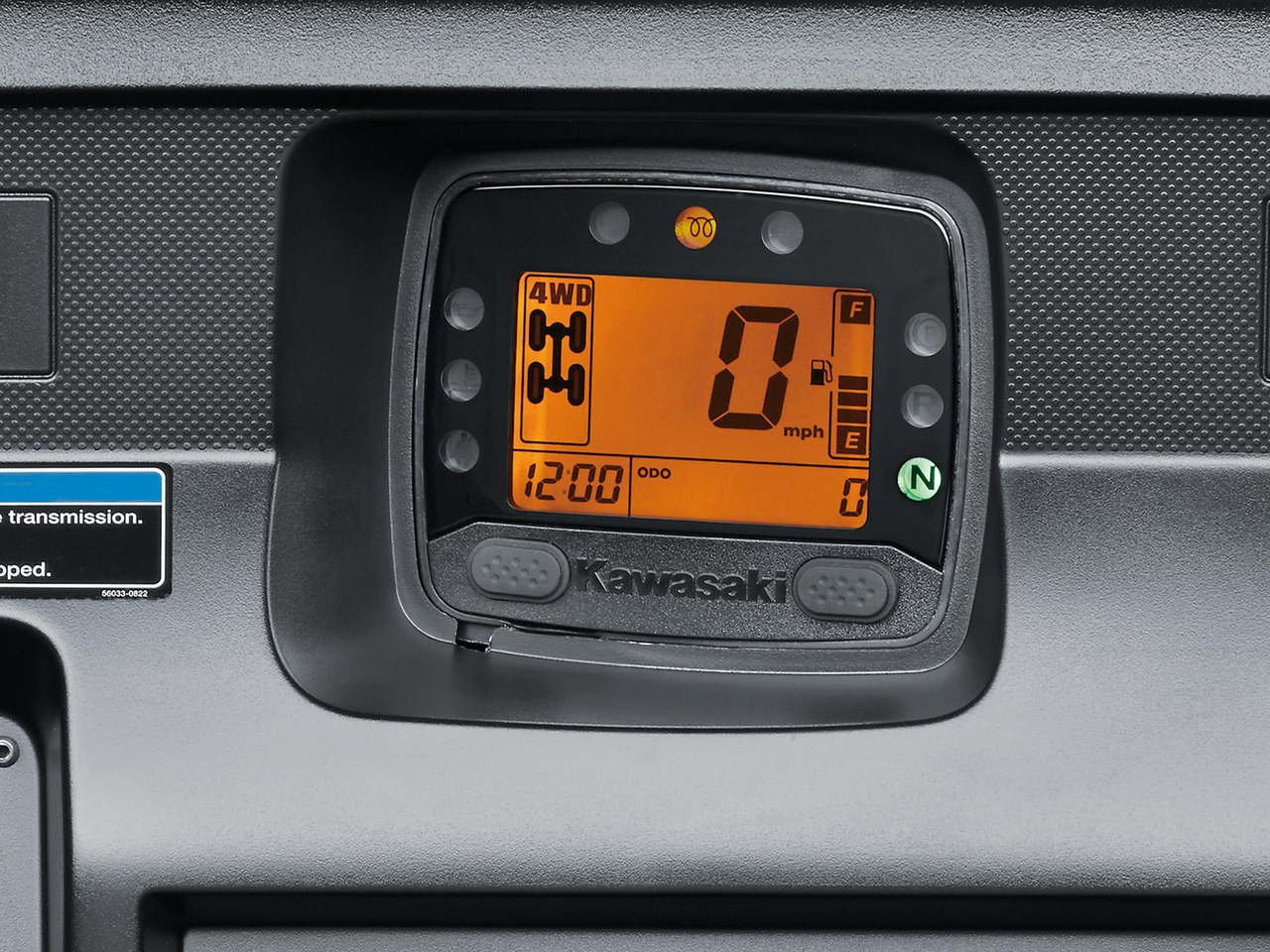

Digital Instrumentation
Multi-function display built into the dash is standard on all models.

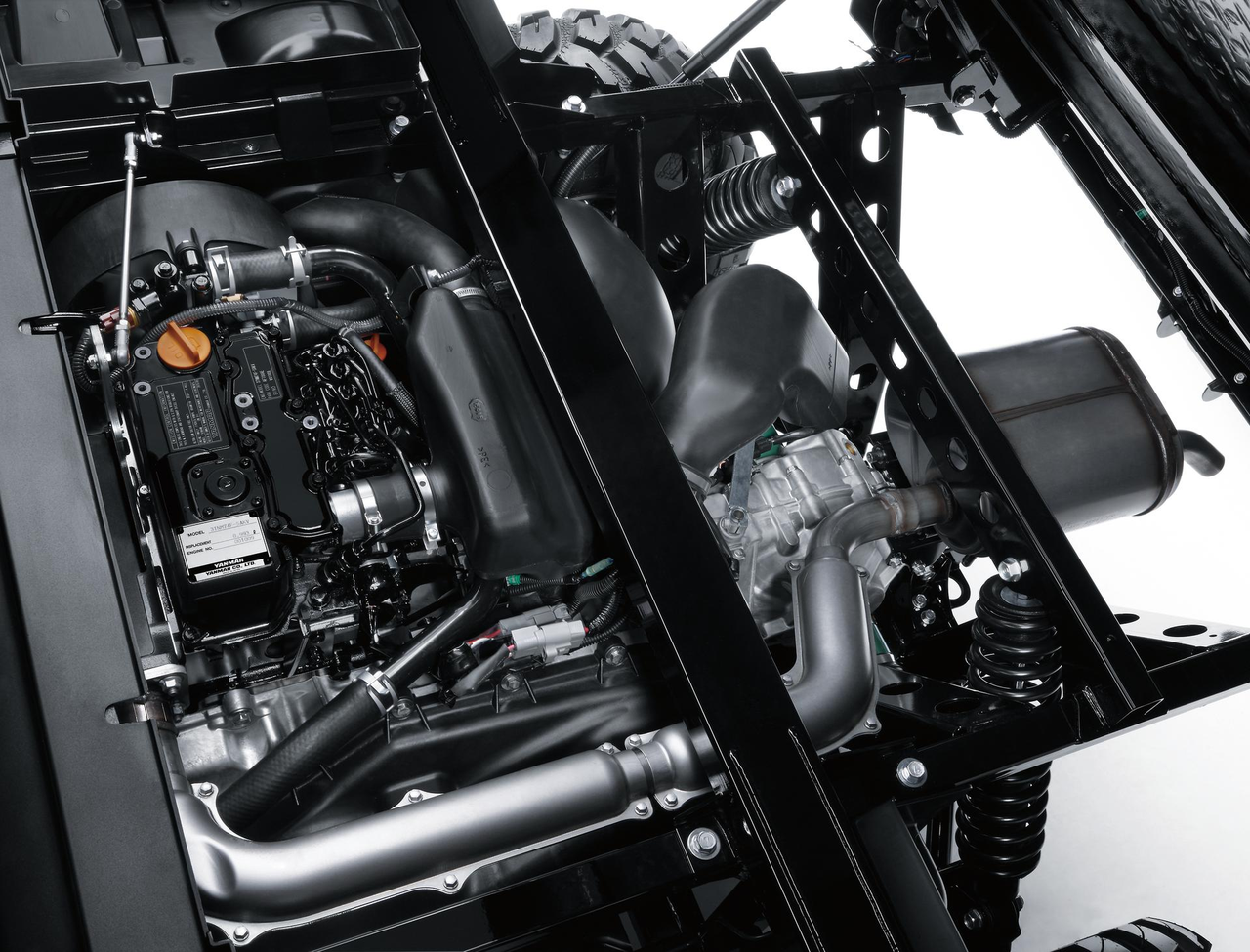

Powerful 993 cm3 Diesel Engine
In addition to on-site fuel compatibility, the high-torque three-cylinder diesel engine of the MULE PRO-DXT and PRO-DX offers excellent performance for hauling loads, as well as easy low-speed control. Vehicle top speed is up to 30 mph.

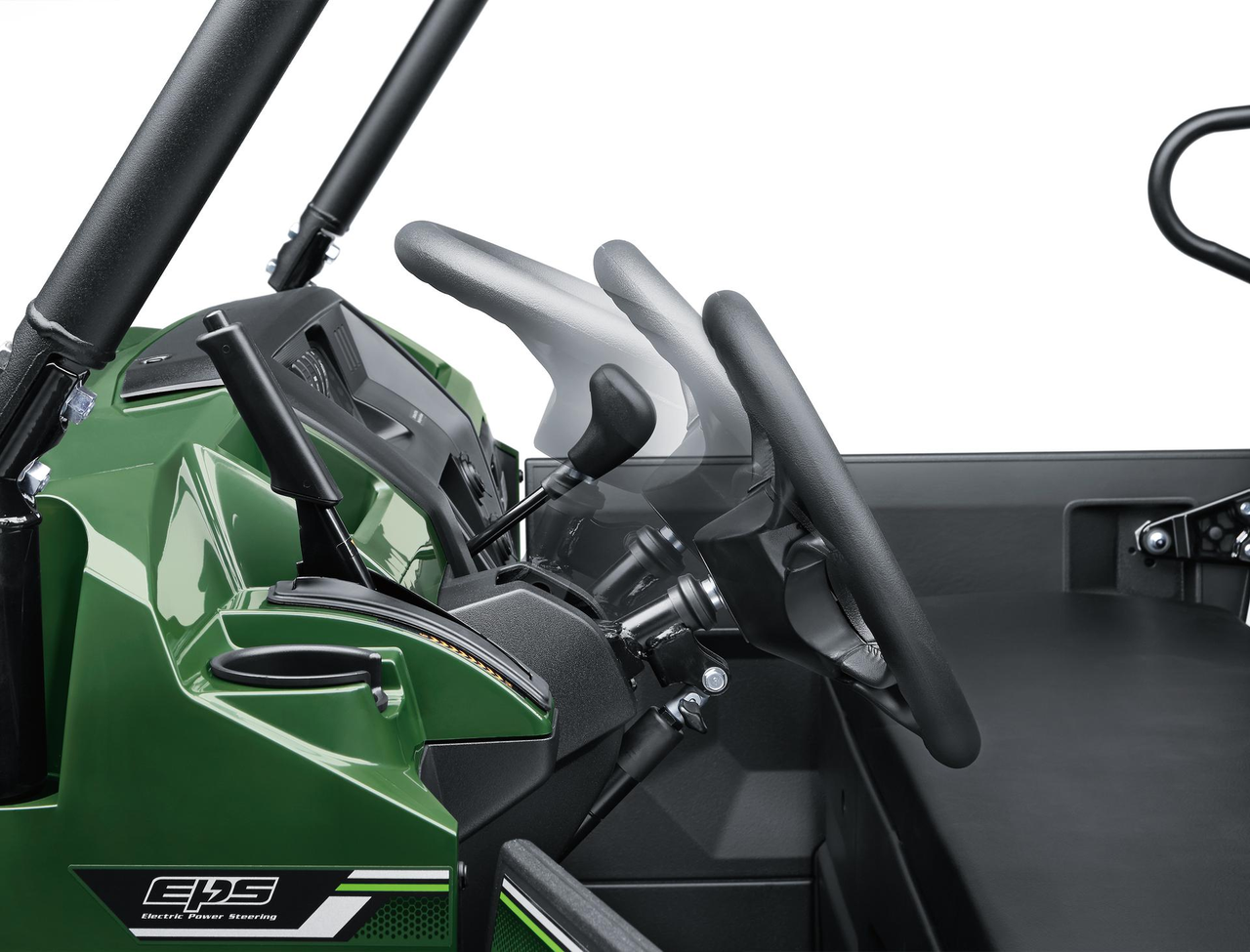

Tilt Steering
Steering wheel has a stepless adjustability range of approximately 34o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle.

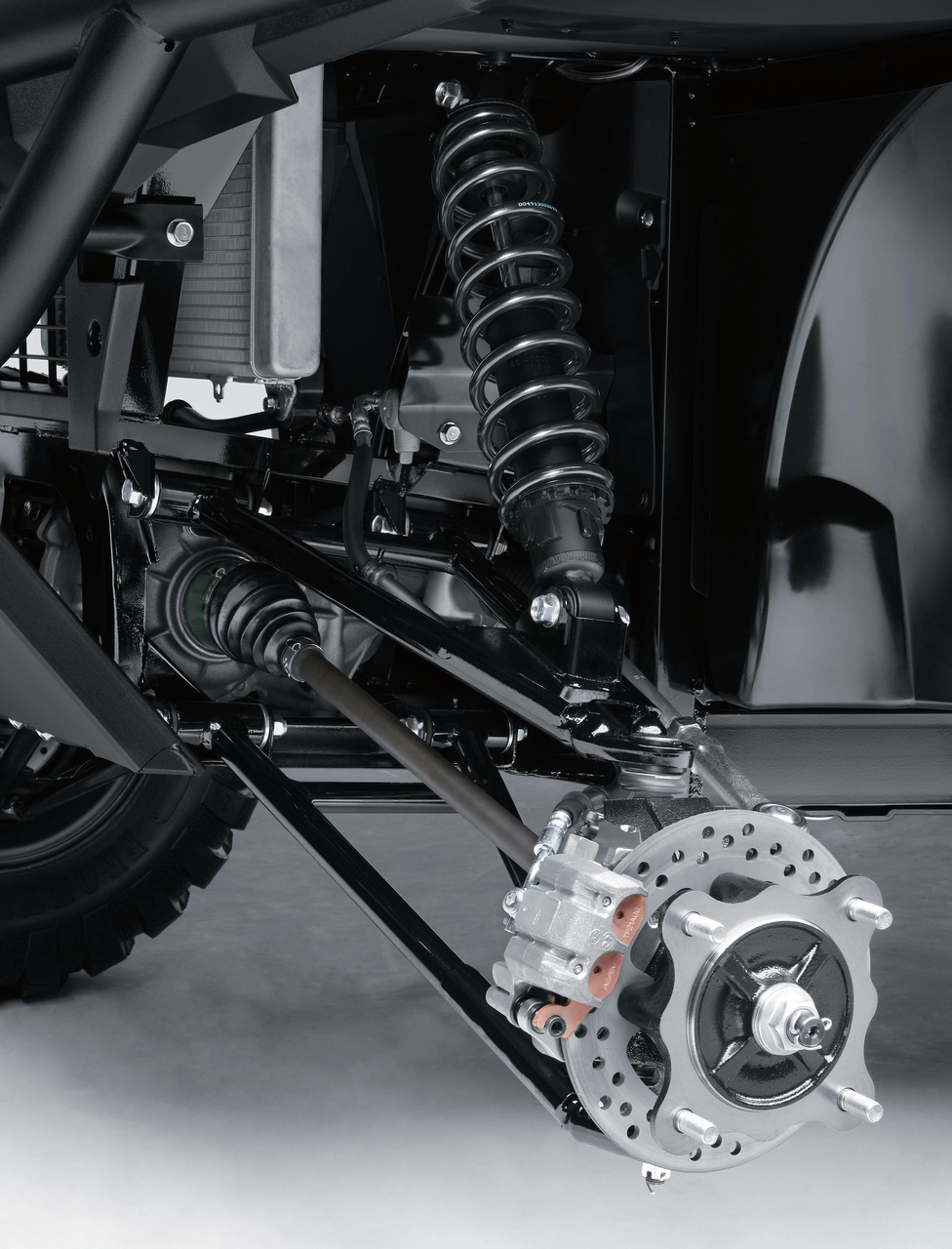

Hydraulic Disc Brakes
Front and rear disc brakes ensure strong, sure stopping power. The hydraulic disc system offers predictable performance, delivering brake power that matches input at the brake pedal.
Stable, Wide-body Chassis
The MULE PRO-DXT and PRO-DX combine a wide-body chassis with a 2,345 mm wheelbase. This contributes to riding stability and comfort, while offering easy operability and manoeuvrability. The rugged frame construction ensures great durability as well as superb handling.
Simple, Rugged Styling
Designed to reflect their tough construction and strong performance, the MULE PRO-DXT and PRO-DX feature rugged, no-nonsense styling similar to that found on high-quality pickup trucks.

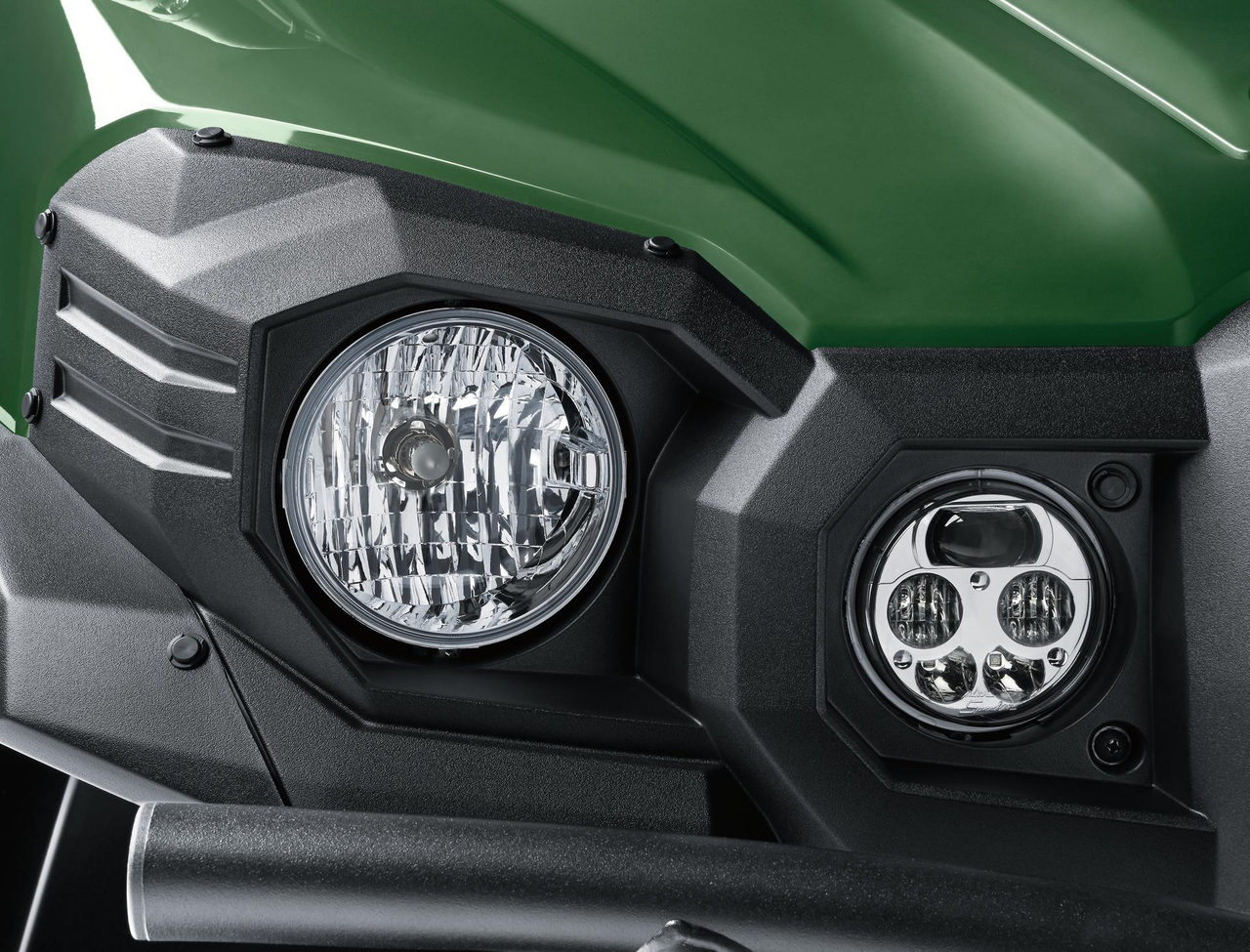

Bright Headlights
Dual 55/60 W headlights and standard LED lights cut a bright path through the dark for clear visibility on night rides.
2 Person Seating Capacity
The MULE PRO-DX has the capacity to allow a maximum of one passenger to join the driver for work and leisure activities.

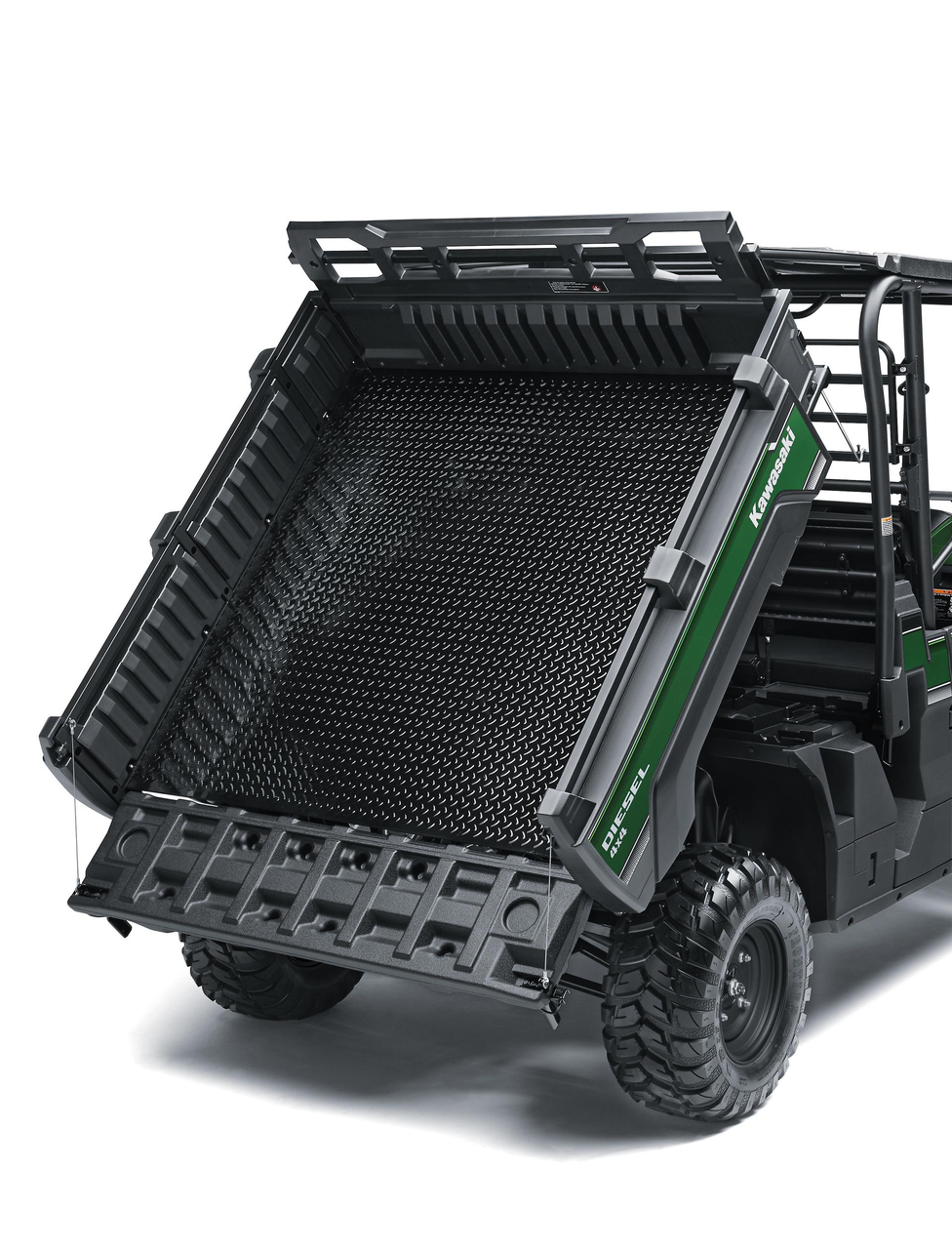

Gas-assisted Tilting Cargo Bed
Gas-assisted tilting cargo bed facilitates accessing the engine.
Electric Power Steering
Kawasaki’s high-grade electric power steering (EPS) system works best when you need it most: at extremely slow speed and when stopped.
Moottori
| Moottorin tyyppi | Nestekäyttöinen, 4-tahtinen, kolmisylinterinen |
|---|---|
| Puristussuhde | 23.5:1 |
| Venttiilimekaniikka | OHV , 6 venttiiliä |
| Sylinterin halkaisija x iskun pituus | 74.0 x 77.0 mm |
| Iskutilavuus | 993 cm³ |
| Polttoainejärjestelmä | Polttoaineen ruiskutus rivikokoonpanolla |
| Voitelujärjestelmä | Painevoitelu, märkä öljyallas |
| Käynnistysjärjestelmä | Sähkö |
Suorituskyky ja voimansiirto
| Huipputeho | 17.8 kW {24 hv } / 3,600 rpm |
|---|---|
| Huippuvääntö | 52.1 N•m {5.3 kgf•m } / 2,400 rpm |
| Voimansiirto | 2-vaihteinen ja peruutus, automaattinen |
| Ensivälityssuhde | 3.334 ~ 0.756 |
| Ensisijainen vetojärjestelmä | Hihnavetoinen momentinmuunnin (CVT) |
| Takarattaan vetotapa | Kardaani 2WD/4WD, kaksoistilainen tasauspyörästö |
| Välityssuhde (lopullinen) | F: 6.382 (31/17 x 35/10) - R: 6.245 (31/21 x 55/13) |
Runko ja mitat
| Runkotyyppi | Portaikkorunko, putkiteräs |
|---|---|
| Rake | 4.4 ° |
| Etujousituksen joustovara | 222 mm |
| Takajousituksen joustovara | 217 mm |
| Eturengas | 26 x 9.00-12 4PR |
| Takarengas | 26 x 11.00R12 4PR |
| P x L x K | 3,385 x 1,625 x 1,965 mm |
| Ohjauskulma vasen/oikea | 40° / 31° |
| Akseliväli | 2,345 mm |
| Maavara | 265 mm |
| Polttoainesäiliön tilavuus | 30.0 litraa |
| Istuinkorkeus | 885 mm |
| Omapaino ajokunnossa* | 845 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Kuivapaino (arvio)** | 810 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Jarrut ja jousitus
| Pysäköintijarru | Dual discs (mechanical) |
|---|---|
| Etujarrun tyyppi | Kaksoislevyt |
| Etujarrusatulan tyyppi | Kaksoismäntäinen |
| Takajarrun tyyppi | Kaksoislevyt |
| Takajarrusatulan tyyppi | Yksimäntäinen |
| Etujousituksen tyyppi | Tupla-A-tukivarret |
| Takajousituksen tyyppi | Tupla-A-tukivarret |
Lisävarusteet
Soft Top
One of our most popular accessories for a good reason.
- This stylish Soft Roof seamlessly installs for full overhead coverage and weather protection on the trail
- Made from 600 denier Sur Last water-resistant fabric
- Available in black
- Tightly straps to the vehicle Roll Over Protective Structure (ROPS) for an integrated fit
This item cannot be combined with a windscreen.
Caution: An enclosed trailer is recommended when transporting a vehicle with a Soft Roof installed.
Hard Cabin with Heater
Part Number: 022CAT0020D – Hard Cabin with Heater for MULE PRO-DX.
Includes: Glass Windscreen, Plastic Roof, Polycarbonate Rear Panel, Polycarbonate Doors (side windows no longer included), Wiper and Washer Kit, and Heater Kit.
Structure made of high-grade steel with quality black finish. Flip-up tinted single-layer safety glass windscreen with rubber seals and locks.
The doors are equipped with hydraulic stoppers and automotive-style locks.
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (accessory fuse kit recommended)
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Hard Cabin
Hard Cabin complete kit for Mule PRO DX and FX
Includes:
- Cab: Glass windscreen, Steel Roof and Steel with Polycarbonate (PC) Rear Panel
- PC doors with glass sliding windows
- Wiper and washer kit
Flip-up tinted single layer safety glass windscreen with rubber seals and locks.
The doors are equipped with hydraulic stoppers, automotive style locks and sliding safety glass side windows.
Half Cabin
Part Number: 022CAT0022C – Half Cabin Kit for MULE PRO-DX.
Includes: Glass Windscreen, Wiper and Washer Kit, Plastic Roof, and ABS with Polycarbonate (PC) Rear Panel.
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (accessory fuse kit recommended)
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Roof Panel
Part Number: 42S05U01S30: Steel Roof Panel for MULE PRO-DXT.
Modular Parts:
- 022CAT0043A: Windshield + Wiper & Washer Kit
- 42S05U01S30: Steel Roof Panel
- 022CAT0047: Rear Panel
- 42S05U03S40: Door Panel Set - Left
- 42S05U03S50: Door Panel Set - Right
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (Accessory Fuse Kit Recommended)
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows (Discontinued).
Door Set - Left (2 Pieces)
Part Number: 42S05U03S40 – Door Panel Set - Left (2 Pieces) for MULE PRO-DXT.
Modular Parts:
- 022CAT0043A: Windshield + Wiper & Washer Kit
- 42S05U01S30: Steel Roof Panel
- 022CAT0047: Rear Panel
- 42S05U03S40: Door Panel Set - Left
- 42S05U03S50: Door Panel Set - Right
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (Accessory Fuse Kit Recommended)
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows .
Door Set - Right (2 Pieces)
Part Number: 42S05U03S50– Door Panel Set - Right (2 Pieces) for MULE PRO-DXT.
Modular Parts:
- 022CAT0043A: Windshield + Wiper & Washer Kit
- 42S05U01S30: Steel Roof Panel
- 022CAT0047: Rear Panel
- 42S05U03S40: Door Panel Set - Left
- 42S05U03S50: Door Panel Set - Right
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (Accessory Fuse Kit Recommended)
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows .
Hard Cabin with Heater
Part Number: 022CAT0040D : Hard Cabin complete kit for DXT.
Includes: Glass Windscreen + Wiper and Washer Kit + Steel Roof + Steel with Polycarbonate (PC) Rear Panel + PC Doors with Glass Fixed Windows + Heater Kit (Accessory Fuse Kit recommended)
Structure made of high grade steel with quality black finish. Flip-up tinted single layer safety glass windscreen with rubber seals and locks.
The doors are equipped with hydraulic stoppers, automotive style locks and sliding safety glass side windows.
Clear sliding window partition between front and rear seats allows complete cab enclosure whether in 2 or 4 passenger mode. Available in packages and as modular parts.
Modular Parts:
- 022CAT0043A: Windshield + Wiper & Washer Kit
- 42S05U01S30: Steel Roof Panel
- 022CAT0047: Rear Panel
- 42S05U03S40: Door Panel Set - Left
- 42S05U03S50: Door Panel Set - Right
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (Accessory Fuse kit Recommended)
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows (Discontinued).
Half Cabin
Part Number: 022CAT0042B: Half Cabin for MULE PRO-DXT.
Includes: Glass Windscreen + Wiper and Washer Kit+ Steel Roof + Steel with Polycarbonate (PC) Rear Panel
Modular Parts:
- 022CAT0043A: Windshield + Wiper & Washer Kit
- 42S05U01S30: Steel Roof Panel
- 022CAT0047: Rear Panel
- 42S05U03S40: Door Panel Set - Left
- 42S05U03S50: Door Panel Set - Right
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (Accessory Fuse Kit Recommended)
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows (Discontinued).
Roof Panel
Part Number: 42S05U01S30A: Steel Roof Panel for MULE PRO-DXT.
Modular Parts:
- 022CAT0043A: Windshield + Wiper & Washer Kit
- 42S05U01S30A: Steel Roof Panel
- 022CAT0047: Rear Panel
- 42S05U03S40: Door Panel Set - Left
- 42S05U03S50: Door Panel Set - Right
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (Accessory Fuse Kit Recommended)
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows (Discontinued).
High Air Intake Kit (Snorkel) pulls cleaner air for the engine from higher up in the vehicle and helps prevent premature clogging in extremely dusty environments.
Can not be combined with cabin.
Heavy-Duty Springs
Increase bottoming resistance when carrying a heavy load and/or when using heavy accessories such as a Hard Cabin.
- Optional on MULE PRO-DX / MULE PRO-DXT
- Steel springs with gloss black finish
- Two front springs and two rear springs included
- Direct replacement of stock springs
- Sold as a set of 4
Wiper Set
Part Number: 022CAT0044 – Wiper Set for MULE PRO-DX/DXT.
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel*
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (accessory fuse kit recommended)
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Washer System
Part Number: 022CAT0045 – Washer Set for MULE PRO-DX/DXT.
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (Accessory Fuse Kit recommended)
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Floor Mat Set (Front)
Supplied as a pair (front) with all fixings included, these hardwearing -SBR*- mats feature a honeycomb surface design to ensure high levels of grip in all conditions, model specific full coverage fitment and Mule logos. Due to their nature of rubber, they can reduce noise levels.
- Key features
- Tailored fit
- Modern design with sidewall - to keep dust, mud and water contained
- Easy installation / removal
- Easy cleaning; with water and non-abrasive substances
- Czech manufacturer; working for worldwide known automotive OEM references
*SBR: styrene-butadiene rubber
Windscreen Kit (MULE PRO-DX/DXT)
Complete windscreen kit for Kawasaki Mule DX with windscreen wiper and washer system. Provides optimum visibility when driving in rain, snow, and dirty conditions.
Package:
022CAT0043A: Windscreen + Wiper + Washer
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (accessory fuse kit recommended)
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Heater Assembly
Part Number: 42S08U01S02 – Heater Assembly for MULE PRO-DX/DXT.
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (accessory fuse kit recommended)
Cargo Bed Extender
Maximize cargo space with this durable, black-finished plastic bed extender—designed to latch securely and work seamlessly with your vehicle.
- Attaches to bed rails using two KQR Accessory Mounts
- Adjustable clamps slide forward or backward
- Reversible design functions as a divider
- Two KQR Accessory Mounts required (not included)
Rearview Mirror
3D curved safety glass provides increased field of view
- Textured black powder coating
- Cast aluminum mounting that works with 38.1mm (1 ½”) to 45mm (1 7/8”) diameter tubes
- 273mm (10 ¾”) L x 89mm (3 ½”) H
Can also be used in combination with the Hard Cabin for Mule Pro-MX and Mule SX. Unfortunately not in combination with the Mule Pro-DX & DXT hard cabin, with roof.
Rearview Mirror
3D curved safety glass provides increased field of view.
- Textured black powder coating
- Cast aluminum mounting that works with 38.1mm (1 ½”) to 45mm (1 7/8”) diameter tubes
- Dimensions: 273mm (10 ¾”) L x 89mm (3 ½”)
- Fits MULE SX, MULE PRO-MX, MULE PRO-DX, MULE PRO-DXT
Can also be used in combination with the Hard Cabin for MULE PRO-MX and MULE SX.
Not compatible with the MULE PRO-DX & DXT Hard Cabin with Roof.
- Bed Liner
- Soft Top
- Hard Cabin with Heater
- Hard Cabin
- Half Cabin
- Roof Panel
- Door Set - Left (2 Pieces)
- Door Set - Right (2 Pieces)
- Hard Cabin with Heater
- Half Cabin
- Roof Panel
- Hydraulic Cargo Bed Lift
- Silent Board (Noise Panel)
- Winch Mount
- Heavy-Duty Springs
- Wiper Set
- Under-Seat Storage Bin
- Fuse Kit
- Washer System
- Floor Mat Set (Front)
- Bracket with EU Tow Ball
- Windscreen Kit (MULE PRO-DX/DXT)
- Heater Assembly
- Cargo Bed Extender
- Rearview Mirror
- Rearview Mirror
