2023

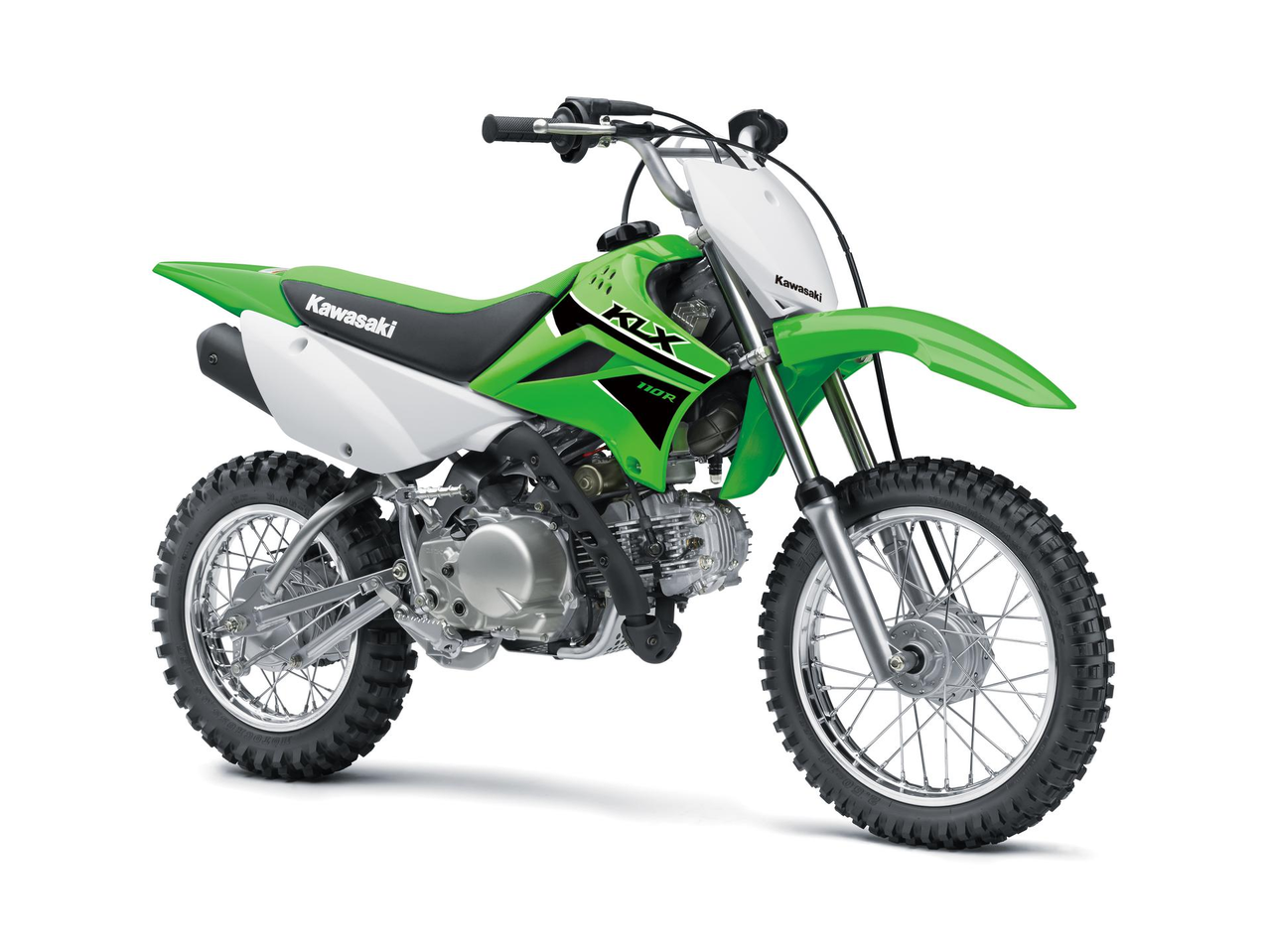

KLX110R
Small bike equals big fun in the KLX110R. This is where the adventure starts. The KLX110R is a versatile off-road bike with a low seat height, plush suspension and an automatic clutch for a fun, confidence-inspiring ride.
Väri
Lisävarustepaketti KLX110R
KLX110R
Show all
Show less
- Lime Green
Inpage Navigation Section: Galleria
Inpage Navigation Section: Ominaisuudet ja tekniset tiedot
- Ominaisuudet
- Tekniset tiedot

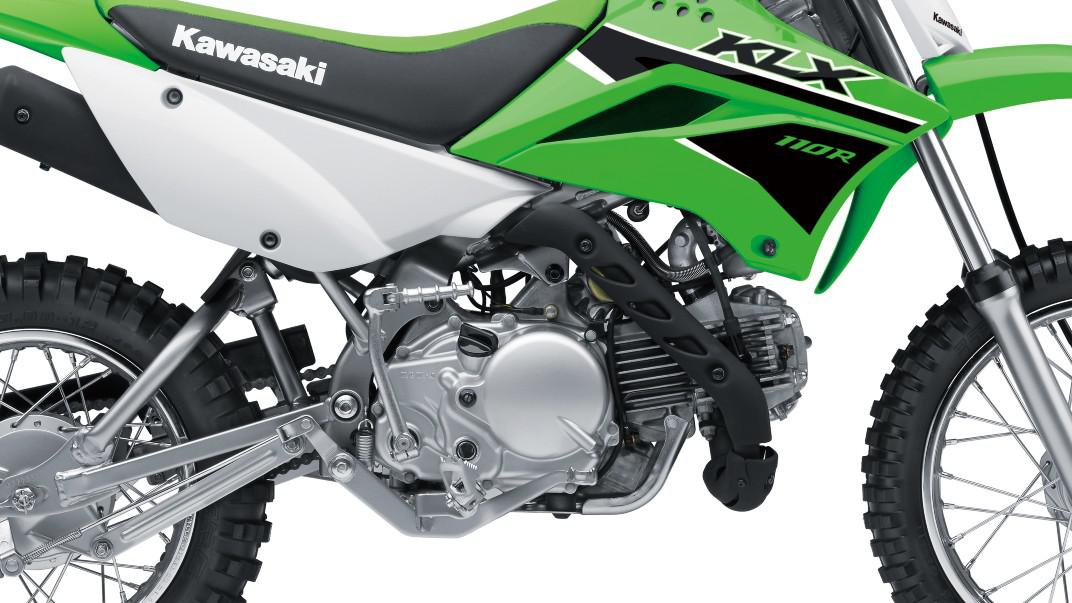

4-Speed Transmission
4-speed transmission with automatic clutch for stall-free shifting.
4-Speed Transmission
4-speed transmission with automatic clutch for stall-free shifting.

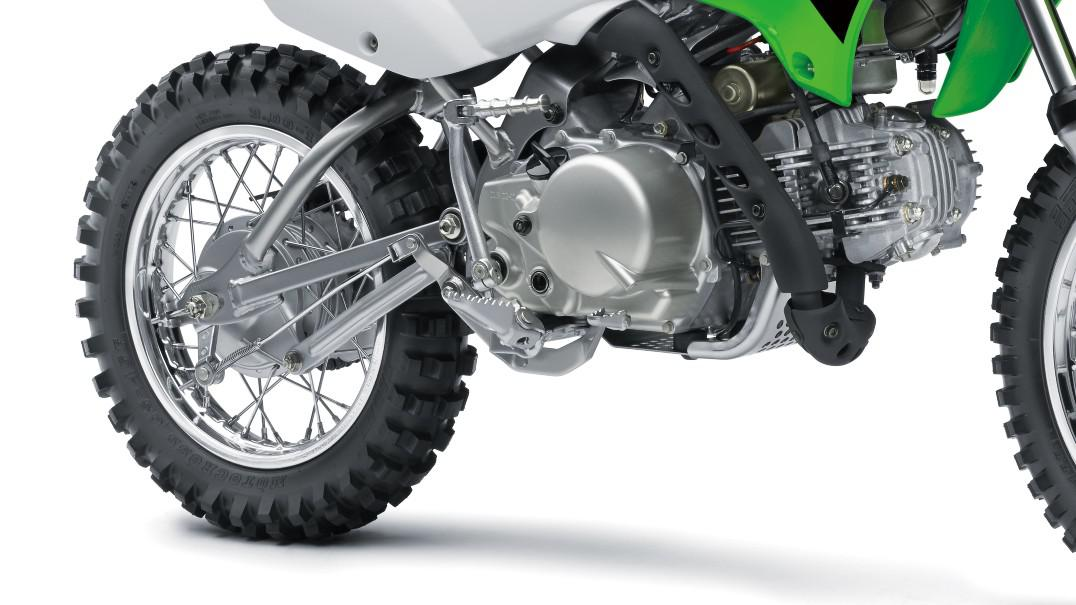

Easy Operation
Shape of the shift pedal, brake pedal and kick start pedal offer easy operation and minimise unintended actuation. Starter and kill switch are both located at the left handle grip, allowing the rider to operate the throttle with one hand while starting or stopping the engine with the other.
Easy Operation
Shape of the shift pedal, brake pedal and kick start pedal offer easy operation and minimise unintended actuation. Starter and kill switch are both located at the left handle grip, allowing the rider to operate the throttle with one hand while starting or stopping the engine with the other.
Compact, Reliable Engine
The 112cc air-cooled, 4-stroke engine provides smooth power and rock solid reliability.
Compact, Reliable Engine
The 112cc air-cooled, 4-stroke engine provides smooth power and rock solid reliability.

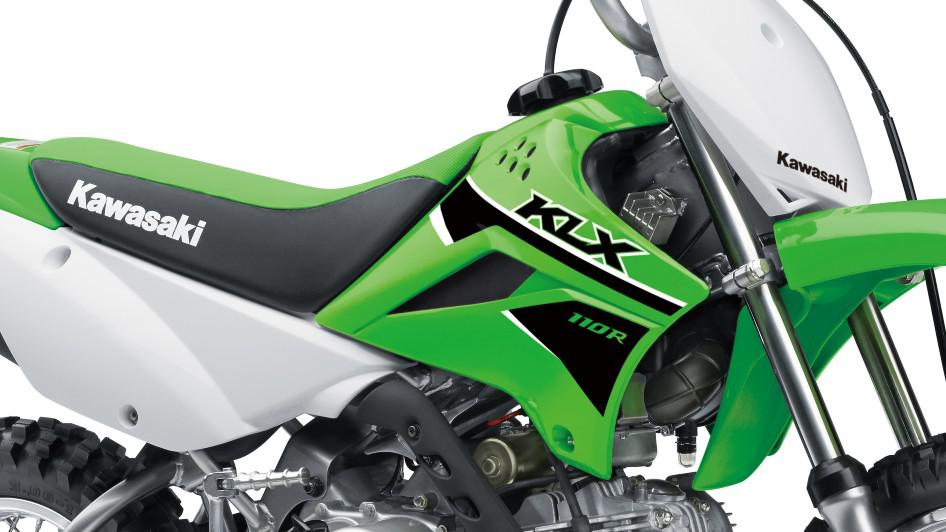

Factory Styling
Sporty styling featuring Lime Green bodywork for race-inspired good looks.
Factory Styling
Sporty styling featuring Lime Green bodywork for race-inspired good looks.
- 4-Speed Transmission
- Easy Operation
- Compact, Reliable Engine
- Factory Styling
4-Speed Transmission
4-speed transmission with automatic clutch for stall-free shifting.
4-Speed Transmission
4-speed transmission with automatic clutch for stall-free shifting.
Easy Operation
Shape of the shift pedal, brake pedal and kick start pedal offer easy operation and minimise unintended actuation. Starter and kill switch are both located at the left handle grip, allowing the rider to operate the throttle with one hand while starting or stopping the engine with the other.
Easy Operation
Shape of the shift pedal, brake pedal and kick start pedal offer easy operation and minimise unintended actuation. Starter and kill switch are both located at the left handle grip, allowing the rider to operate the throttle with one hand while starting or stopping the engine with the other.
Compact, Reliable Engine
The 112cc air-cooled, 4-stroke engine provides smooth power and rock solid reliability.
Compact, Reliable Engine
The 112cc air-cooled, 4-stroke engine provides smooth power and rock solid reliability.
Factory Styling
Sporty styling featuring Lime Green bodywork for race-inspired good looks.
Factory Styling
Sporty styling featuring Lime Green bodywork for race-inspired good looks.
Moottori
| Moottorin tyyppi | Ilmajäähdytteinen, 4-tahtinen, yksisylinterinen |
|---|---|
| Puristussuhde | 9.5:1 |
| Venttiilimekaniikka | SOHC , 2 venttiiliä |
| Sylinterin halkaisija x iskun pituus | 53.0 x 50.6 mm |
| Iskutilavuus | 112 cm³ |
| Polttoainejärjestelmä | Kaasutin |
| Voitelujärjestelmä | Painevoitelu, märkä öljyallas |
| Käynnistysjärjestelmä | Sähkö ja poljinkäynnistys |
| Sytytys | Digitaalinen |
Suorituskyky ja voimansiirto
| Voimansiirto | 4-vaihteinen, palautusvaihde |
|---|---|
| Kytkin | Sentrifugi- ja märkälevykytkin, monilevy |
| Ensivälityssuhde | 3.409 (75/22) |
| Välityssuhde 1. vaihde | 3.000 (36/12) |
| Välityssuhde 2. vaihde | 1.938 (31/16) |
| Välityssuhde 3. vaihde | 1.350 (27/20) |
| Välityssuhde 4. vaihde | 1.087 (25/23) |
| Takarattaan vetotapa | Ketju |
| Välityssuhde (lopullinen) | 2.923 (38/13) |
Runko ja mitat
| Runkotyyppi | Selkärankarunko, teräs |
|---|---|
| Rake | 24.8 ° |
| Jättö | 50 mm |
| Etujousituksen joustovara | 110 mm |
| Takajousituksen joustovara | 110 mm |
| Eturengas | 2.50-14 4PR |
| Takarengas | 3.00-12 4PR |
| P x L x K | 1,560 x 650 x 955 mm |
| Ohjauskulma vasen/oikea | 45° / 45° |
| Akseliväli | 1,075 mm |
| Maavara | 215 mm |
| Polttoainesäiliön tilavuus | 3.6 litraa |
| Istuinkorkeus | 680 mm |
| Omapaino ajokunnossa* | 76 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Kuivapaino (arvio)** | 72 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Jarrut ja jousitus
| Etujarrun tyyppi | Rumpujarru |
|---|---|
| Etujarrun halkaisija | Ø 90 mm |
| Takajarrun tyyppi | Rumpujarru |
| Takajarrun halkaisija | Ø 110 mm |
| Etujousituksen tyyppi | Teleskooppinen etuhaarukka |
| Etujousituksen halkaisija | Ø 30 mm |
| Takajousituksen tyyppi | Yksi iskunvaimennin |
