2026
Vulcan S
Värit
Lisävarustepaketti Vulcan S
- Ominaisuudet
- Teknologiat
- Tekniset tiedot
Light handling
Low overall weight, fine-tuned chassis rigidity balance, 18”/17” radial tyres and suspension settings result in a bike with light, easy handling and easy manoeuvrability.

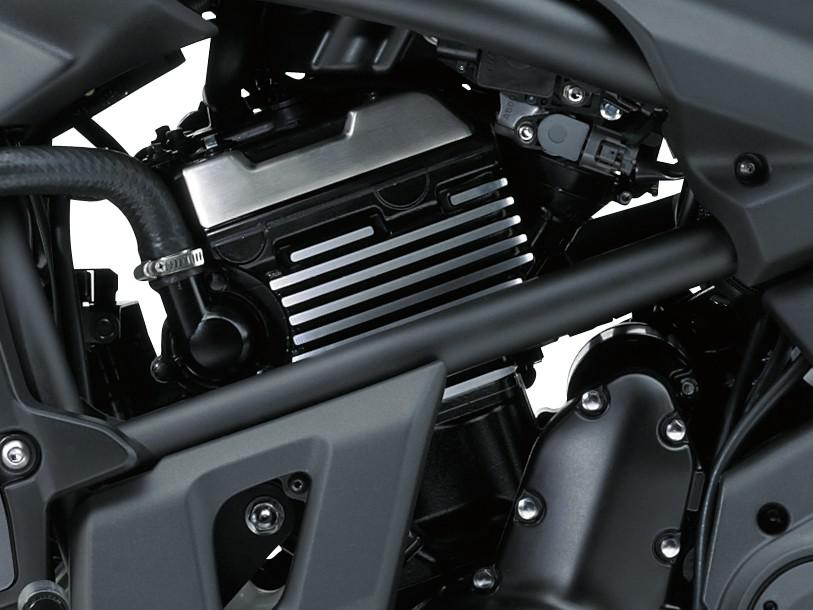

Easy-to-control 649 cm3 liquid-cooled, 4-stroke Parallel Twin
Liquid-cooled, DOHC, 8-valve 649 cm3 Parallel Twin with fuel injection delivers smooth, responsive performance, especially in the low and medium rpm ranges. The engine was tuned for rider-friendly power characteristics that will inspire confidence in new riders. The Vulcan S offers smooth starts from a standstill, smooth acceleration, and a satisfying pull when accelerating. The strong acceleration facilitates highway merging and passing.
Modern, urban styling
Flowing style with long-and-low stance and modern elements like the original headlamp and cast wheels with five spoke pair design give the Vulcan S very nontraditional cruiser looks.
Low seat height
Being able to easily put your feet on the ground when stopped is one of the most important factors in feeling comfortable on a motorcycle. At 705 mm, the Vulcan S’s low seat is very accommodating.

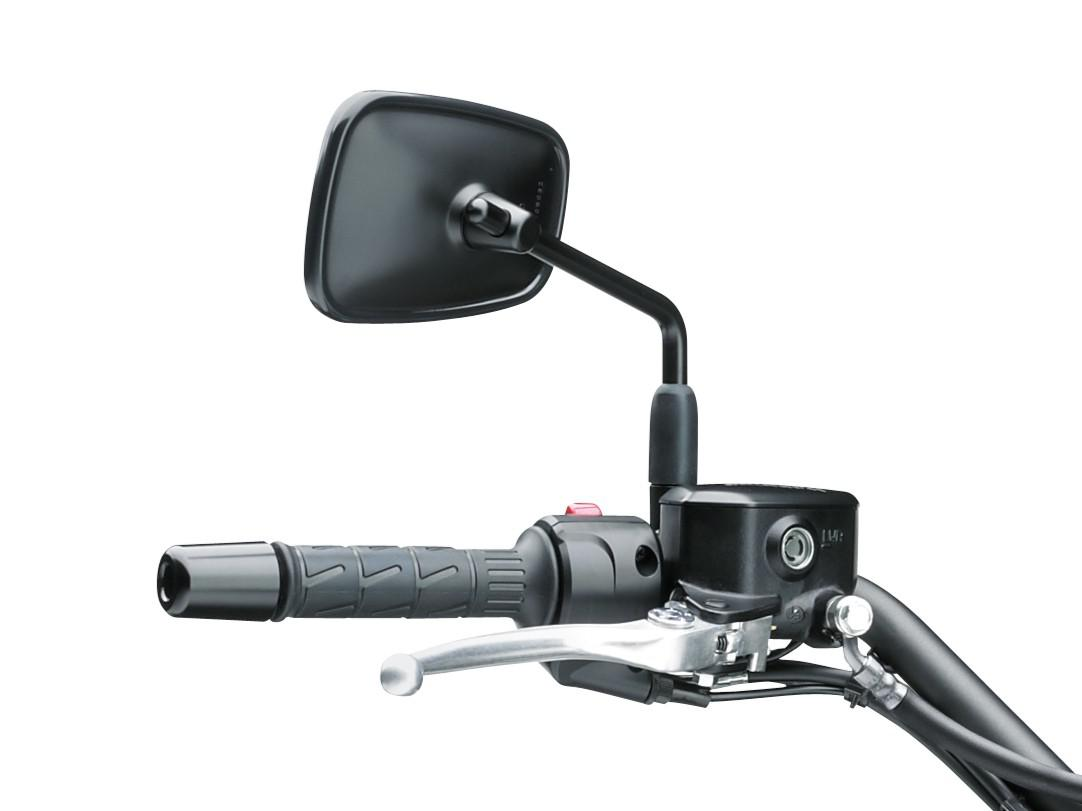

Adjustable clutch/brake levers
Multi-position levers allow riders to adjust lever position to suit hand size and preference.
Relaxed, foot-forward riding position
The compact engine and slim frame result in a design that is narrow at the knees and feet. Forward positioned footpegs are ideal for relaxed, cruiser style riding.
Adjustable footpegs
3-position footpegs allow riders to adjust foot position to suit size and preference. Three positions available: STD, 25 mm forward, 25 mm back.
Long range
With its 14 litre fuel tank capacity and the Parallel Twin engine’s good fuel economy, the long range offered by the Vulcan S means riders can go longer between fill-ups—convenient in town, and reassuring when out on a daytrip.

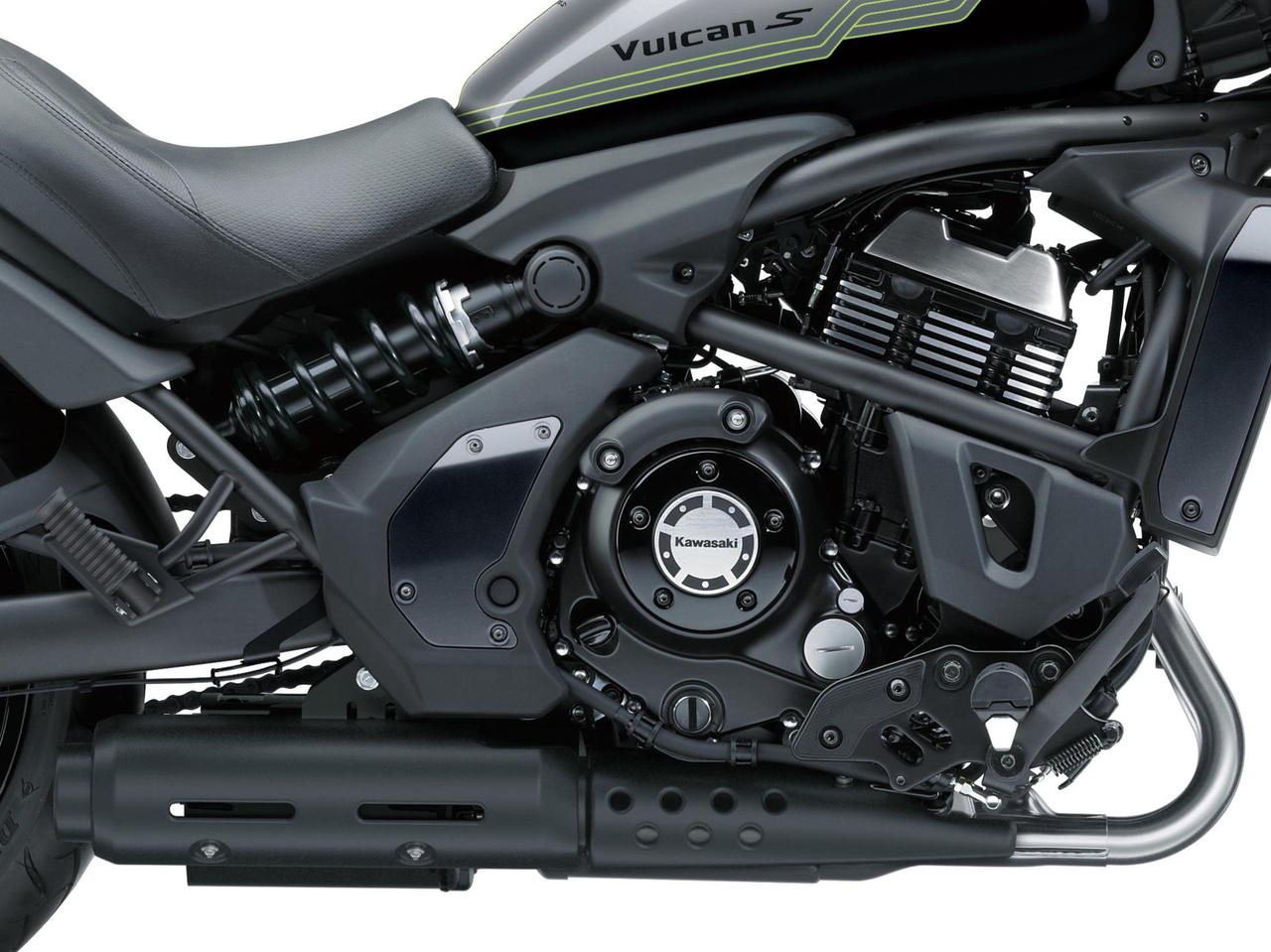

Under-engine muffler
Muffler located under the engine contributes to a low centre of gravity, and is tucked out of the way, making it easier to reach the ground when stopped. The muffler’s design conveys both power and style.
Easy-to-read instrumentation
Original-design instrumentation cluster features an analogue-style tachometer and multi-purpose LCD. Convenient features keep riders fully informed of operating conditions. Including a gear indicator.

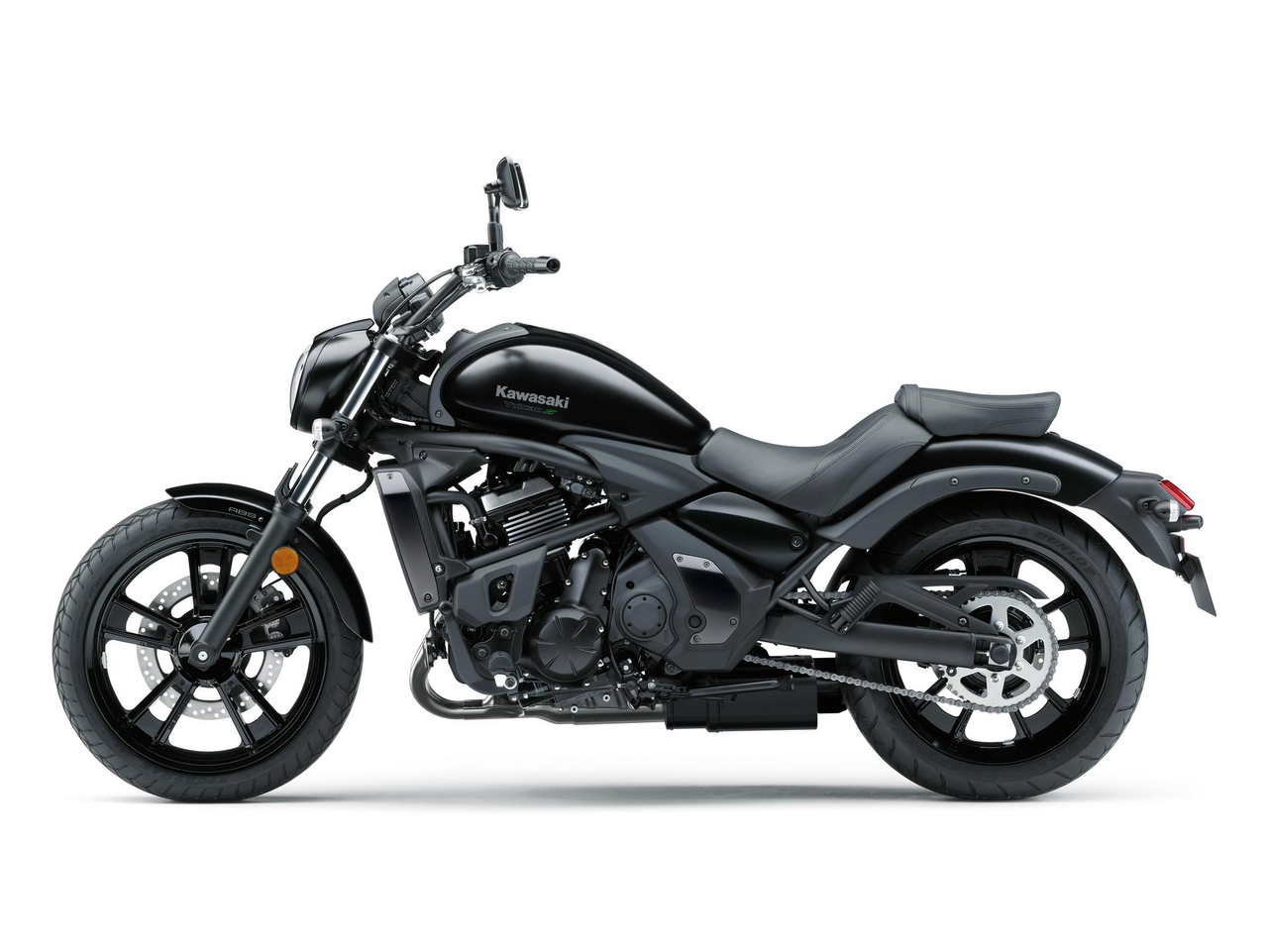

Long wheelbase
Wheelbase of 1,575 mm was chosen for a balance of light handling and superior riding stability. The same characteristics that make it fun to ride (light handling and relaxed, rider-friendly ergonomics), also make the Vulcan S ideal for new riders.

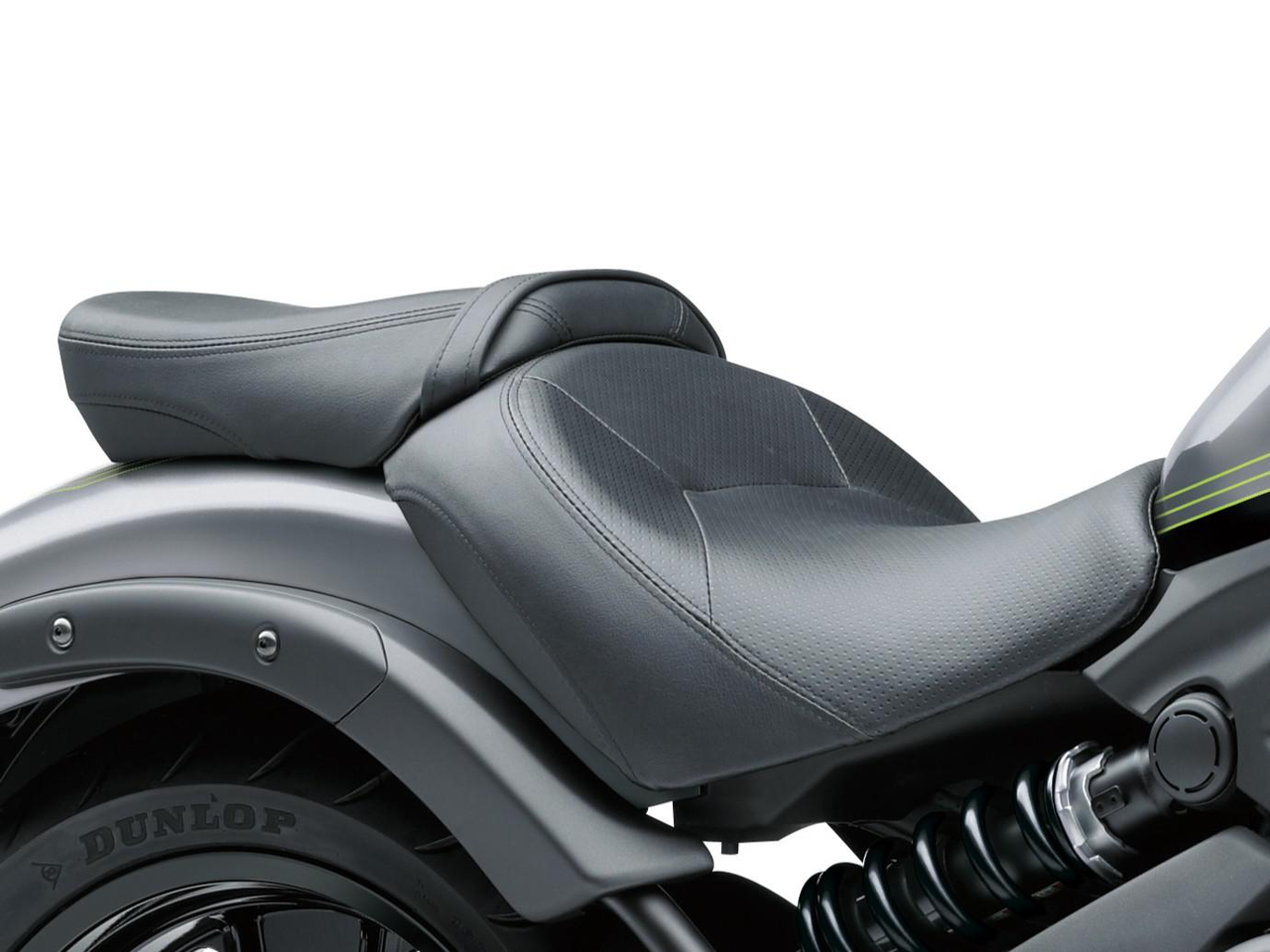

Comfortable seat
Sculpted seat design with thick padding offers excellent comfort and good hip support.

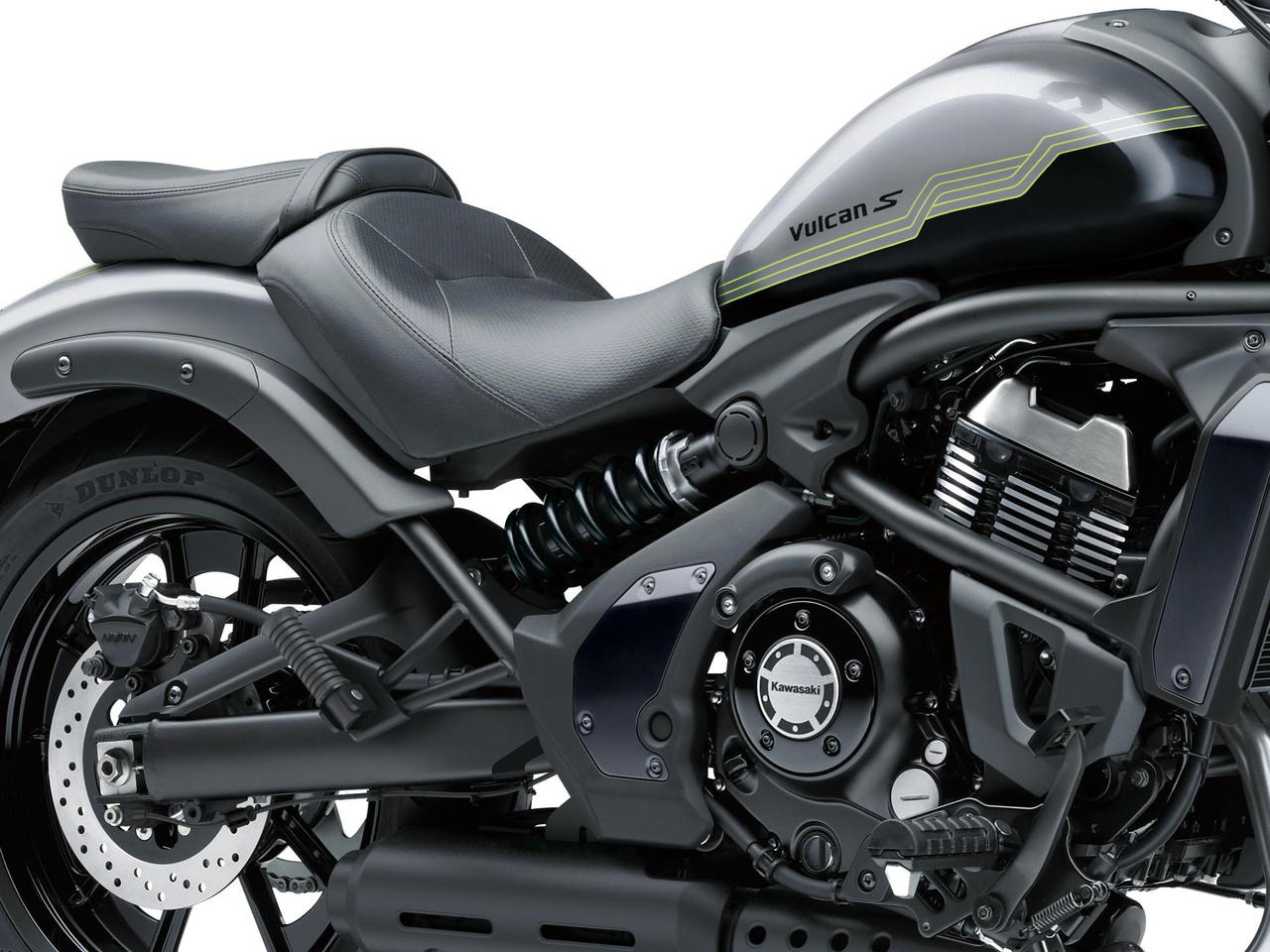

Slim backbone-style rear frame
The design of the frame, rear suspension and swingarm create an integrated line running from the front of the bike to the rear hub. A pipe frame of high-tensile steel gives the bike a lightweight appearance. 3D analysis was used to achieve the target rigidity and stress values.

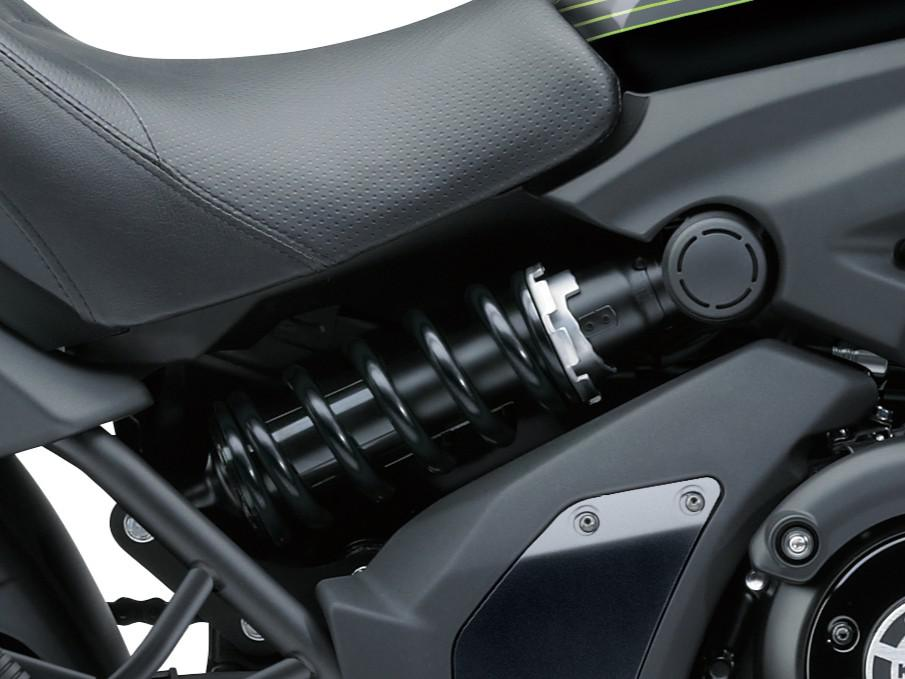

Linkage-equipped offset laydown single-shock
Offset laydown single-shock rear suspension is equipped with linkage to enable a longer stroke for increased ride comfort. The rear suspension arrangement also contributes to the bike’s compact design, freeing up space for a large-volume silencer under the engine. Rear shock features adjustable preload, with 7 positions to suit rider size and payload.

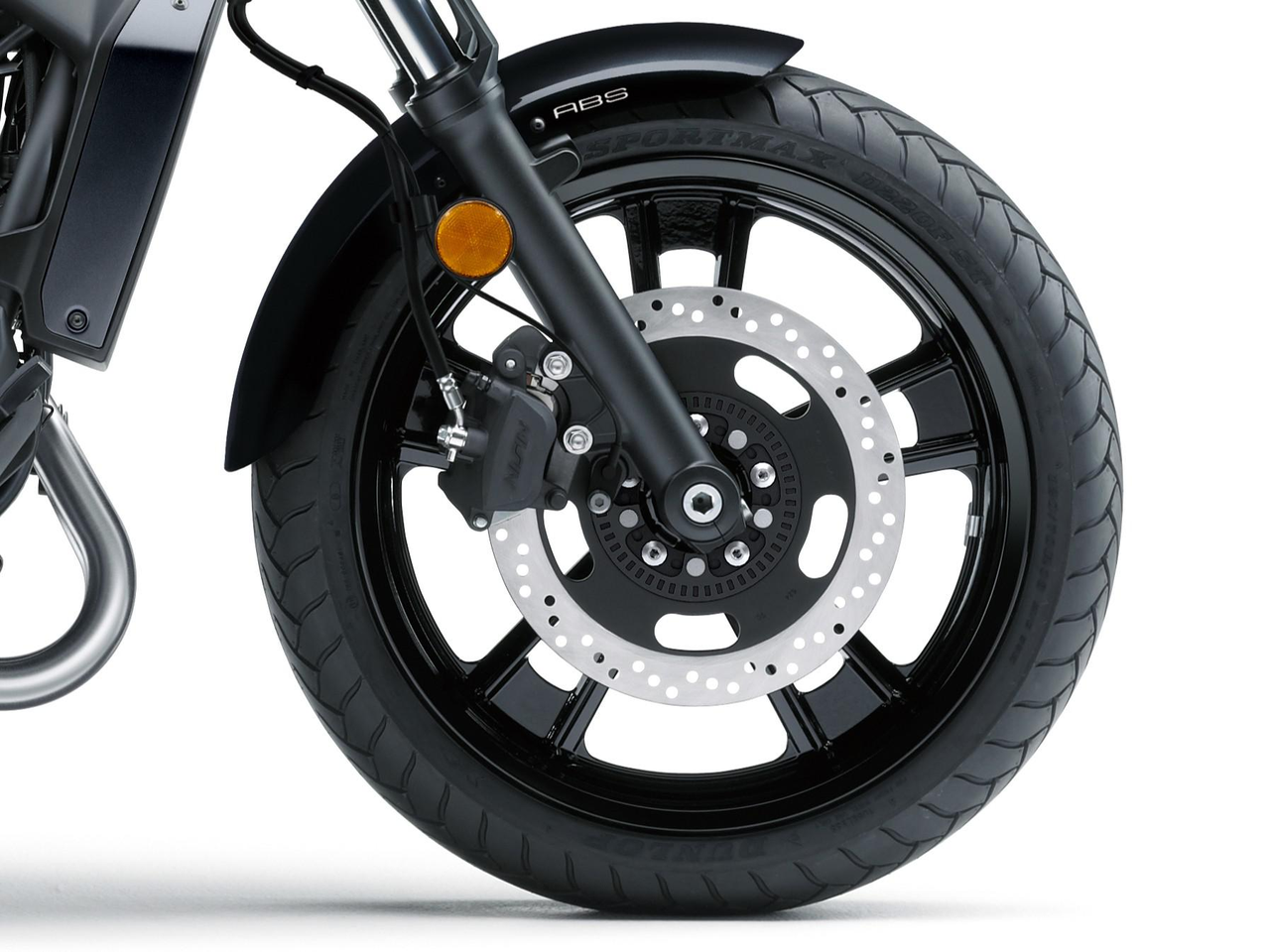

Large disc brakes
Large-diameter disc brakes balance ample stopping power with easy control for beginning riders.
Dual Throttle Valves
Kaksoiskaasuläpät tarjoavat lisää tehoa ja helpompaa hallintaa toisen, ECU:n ohjaaman läppäsarjan ansiosta.
ERGO-FIT
ERGO-FIT on käyttöliittymäjärjestelmä, joka mahdollistaa laajan kuljettajajoukon istuvuuden ja hallinnan tunteen.
Economical Riding Indicator
Economical Riding Indicator -merkki kojetaulussa kertoo taloudellisesta polttoaineenkulutuksesta ja kannustaa säästävään ajotapaan.
ABS
ABS-jarrujärjestelmä (lukkiutumaton jarrujärjestelmä) varmistaa vakaan jarrutustehon estämällä pyörien lukkiutumisen jarrutuksessa.
Moottori
| Moottorin tyyppi | Nestekäyttöinen, 4-tahtinen, rinnakkaiskaksikko |
|---|---|
| Puristussuhde | 10.8:1 |
| Venttiilimekaniikka | DOHC , 8 venttiiliä |
| Sylinterin halkaisija x iskun pituus | 83.0 x 60.0 mm |
| Iskutilavuus | 649 cm³ |
| Polttoainejärjestelmä | Polttoaineen ruiskutus : 38 mm x 2 |
| Voitelujärjestelmä | Painevoitelu, puolikuiva öljyallas |
| Käynnistysjärjestelmä | Sähkö |
| Sytytys | Akku ja kelat (transistorisytytys) |
Suorituskyky ja voimansiirto
| Huipputeho | 44.7 kW {61 hv } / 7,500 rpm |
|---|---|
| Huippuvääntö | 62.4 N•m {6.4 kgf•m } / 6,600 rpm |
| CO₂-päästö | 104.0 g/km |
| Polttoaineenkulutus | 4.5 l/100km |
| CO₂-päästö 35 kW -sarjalla | 102.0 g/km |
| Polttoaineenkulutus 35 kW -sarjalla | 4.4 l/100km |
| Voimansiirto | 6-vaihteinen, palautusvaihde |
| Kytkin | Märkälevykytkin, monilevy |
| Ensivälityssuhde | 2.095 (88 / 42) |
| Välityssuhde 1. vaihde | 2.438 (39 / 16) |
| Välityssuhde 2. vaihde | 1.714 (36 / 21) |
| Välityssuhde 3. vaihde | 1.333 (32 / 24) |
| Välityssuhde 4. vaihde | 1.111 (30 / 27) |
| Välityssuhde 5. vaihde | 0.966 (28 / 29) |
| Välityssuhde 6. vaihde | 0.852 (23 / 27) |
| Takarattaan vetotapa | Suljettu ketju |
| Välityssuhde (lopullinen) | 3.067 (46 / 15) |
Runko ja mitat
| Runkotyyppi | Putkirunkoinen timanttirunko, erittäin luja teräs |
|---|---|
| Rake | 31.0 ° |
| Jättö | 120 mm |
| Etujousituksen joustovara | 130 mm |
| Takajousituksen joustovara | 80 mm |
| Eturengas | 120/70 R18 M/C 59H |
| Takarengas | 160/60 R17 M/C 69H |
| P x L x K | 2,310 x 880 x 1,100 mm |
| Ohjauskulma vasen/oikea | 35° / 35° |
| Akseliväli | 1,575 mm |
| Maavara | 130 mm |
| Polttoainesäiliön tilavuus | 14.0 litraa |
| Istuinkorkeus | 705 mm |
| Omapaino ajokunnossa* | 229 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Kuivapaino (arvio)** | 215 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Jarrut ja jousitus
| Etujarrun tyyppi | Yksittäinen levy |
|---|---|
| Etujarrun halkaisija | Ø 300 mm |
| Etujarrusatulan tyyppi | Kaksoismäntäinen |
| Takajarrun tyyppi | Yksittäinen levy |
| Takajarrun halkaisija | Ø 250 mm |
| Takajarrusatulan tyyppi | Yksimäntäinen |
| Etujousituksen tyyppi | Teleskooppinen etuhaarukka |
| Etujousituksen halkaisija | Ø 41 mm |
| Takajousituksen tyyppi | Kallistettu yksittäisiskunvaimennin linkustolla, 7-portainen jousen esijännityksen säätö |
Lisävarusteet

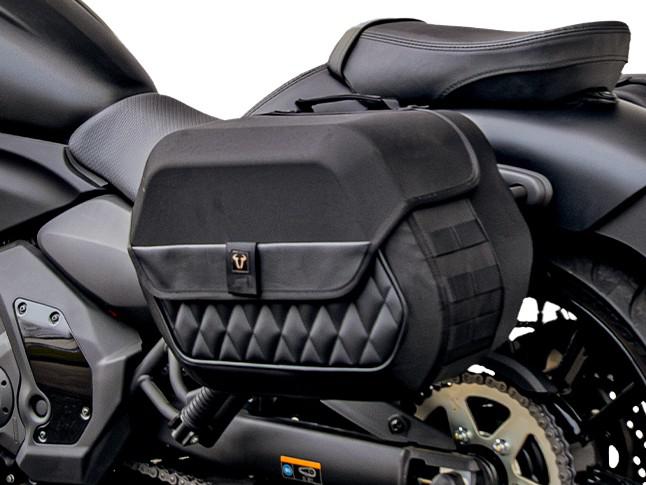

Quick-Release Saddlebag System 2 x 19.5 L with locks
Quick Release lockable black saddlebag system with 2 x 19.5 Litre capacity.
This system combines the low weight of a saddlebag with the high form stability of a case.
Strong fixation keep the bags stable in place. Easy to fit and remove with handle inside of case.
When removed, only unobtrusive fixing points remain on the bike.
The reinforced structure and black outer material combines textile fabric and grained imitation leather with diamond quilting.
The lockable side bags have an integrated carrying handle so you can pack your bags at home/hotel and conveniently carry and fit to the bike.
Including waterproof inner bags.
5 part numbers are required:
- 150SUU0007LH - Saddlebag Bracket, Left
- 150SUU0007RH - Saddlebag Bracket, Right
- 149LUU0010LH - Saddlebag, Left (19.5 L)
- 149LUU0010RH - Saddlebag, Right (19.5 L)
- 149LUU0009 - Saddlebag Lock Set
Arrow Full System Exhaust (Euro 5+)
Arrow matt black exhaust system for Vulcan S. Full system made of stainless steel with catalyst and carbon endcap. This system is lighter compared to the stock exhaust system and gives a deep sporty sound.
The exhaust system is homologated according to EU regulations (emissions and noise) and has ECE type-approval. (Double oxygen sensor Euro5+)
Café Style Windscreen Kit
Install the Café Style Windscreen for increased wind deflection and enhanced rider comfort.
The Café Style Windscreen installation requires 2 components:
- Café Style Smoke Windscreen - 999940826
- Fork Bracket - 999940824
Arrow Full System Exhaust (Euro 5+)
Arrow matt black exhaust system for Vulcan S. Full system made of stainless steel with catalyst and carbon endcap. This system is lighter compared to the stock exhaust system and gives a deep sporty sound.
The exhaust system is homologated according to EU regulations (emissions and noise) and has ECE type-approval. (Double oxygen sensor Euro5+)
KQR Saddlebag Kit
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Quick release system inside the bag allows bags to be removed from the support easily without tools.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
KQR mounting system allows for easy installation of KQR Saddlebags once installed.
Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm
The KQR Saddlebag Kit consists of 3 components:
- Saddlebag set - 999940522
- Saddlebag support brackets - 999940521B
- KQR bracket kit (side bars) - 999940523B
Saddlebag Kit
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
(Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm)
The Fixed Saddlebag Kit consists of 2 components:
- Saddlebag set - 999940522
- Fixed saddlebag mounting bracket - 999940819
Large Windscreen Kit
Large Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:
- Fork bracket - 999940824
- Windscreen bracket - 999940825
- Windscreen - 999940823

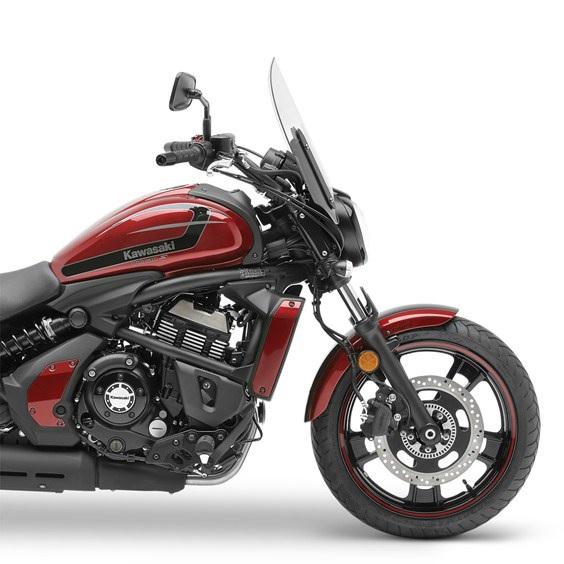

Medium Windscreen Kit
Medium Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:
- Fork bracket - 999940824
- Windscreen bracket - 999940825
- Windscreen - 999940828
Large KQR Windscreen Kit
Large KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:

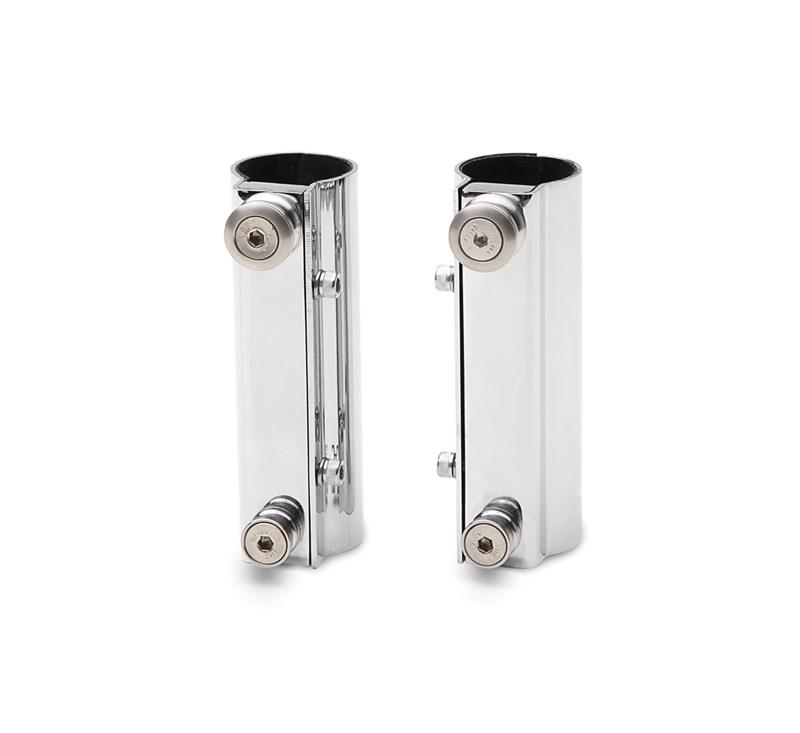

- KQR fork bracket, chrome - 999940546
- KQR Windscreen bracket with lock, black - 999940526B
- Large Windscreen - K999940632EU

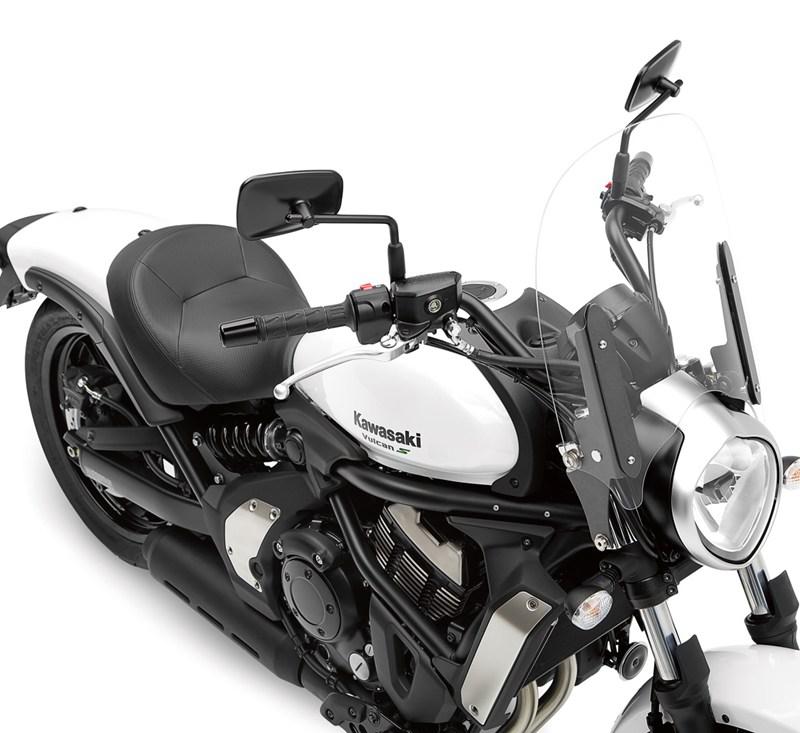

Medium KQR Windscreen Kit
Medium KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:
- KQR fork bracket, chrome - 999940546
- KQR Windscreen bracket with lock, black - 999940526B
- Medium Windscreen - 999940633
KQR Passenger Backrest, Chrome
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools
- KQR mounting system is key locked for added security. 20cm (8”) tall from seat surface
- Designed to mount optional Luggage Rack (sold separately)
- Requires KQR bracket kit for fitment (sold separately)
- Chrome finish
Luggage Rack Chrome (Option for KQR backrest)
Solo Luggage Rack, Black
Durable powder coated steel luggage rack that replaces the passenger seat.
Designed to enhance usability and styling. Securely mount this luggage rack to your rear fender for extra cargo capacity. Developed by Kawasaki to integrate with the clean, modern lines of your Vulcan S
Length = 35cm, width = 20cm. Anthracite/Black or Chrome finish.
Important Notes: Not suitable for passenger seating.
KQR Passenger Backrest, Black
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools
- KQR mounting system is key locked for added security. 20cm (8”) tall from seat surface
- Designed to mount optional Luggage Rack (sold separately)
- Requires KQR bracket kit for fitment (sold separately)
- Anthracite/Black finish
18-21L Rear Bag
18-21L Rear Bag. Replaces the passenger seat.
Rugged, water-resistant nylon construction with reinforced foam body and lid.
Replaces rear seat and mounts to rear fender side bolts using custom quad side straps and steel center bracket with non-scratch rubberized coating to help protect paint finish
Expandable feature adds 7cm of vertical storage capacity (18-21 liters). Reflective piping for night visibility. Logo on lid.
L=45, W=25, H=20-28cm
Note: Do not use on satin, semi-gloss, or flat finish bodywork surfaces
Tank Bag
Rugged, water-resistant nylon tank bag with reinforced foam body and lid to hold shape even when empty.
Expandable feature adds 7cm of storage capacity.
Clear window tray (13x10x4cm) for transponder, coins, etc. Dual outlet ports.
Reflective piping, front hook, magnetic skirt and rear strap. Non-scratch rubberized coating to protect paint finish.
Power/drink tube port at top of bag for direct access to electronic devices, hydration systems, etc. Including rain cover.
Volume 18-20L
L=43 W=28 H=15-22cm
Do not use on semi-gloss or matt/flat finish fuel tank surfaces
Luggage Rack Kit
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest.
Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
All required brackets and hardware included.
20cm (8") long and 23cm (9") wide.
The Passenger Luggage Rack installation requires 2 components:
- Fixed Passenger Backrest Kit - 999940818
- Luggage Rack - 999940846
ERGO-FIT™ Reduced Reach Kit
ERGO-FIT™ Reduced Reach.
Suggested for riders shorter than 170cm.
A combination of adjustable factory components and accessories reduce the reach to handlebars and footpegs for the best possible fit.
- 1: Ergo-Fit 3 position footpegs can be adjusted 25mm closer to your body with shorter accessory tie rod, for maximum comfort and confidence.
- 2: Ergo-Fit Accessory handlebar decreases reach by 36mm. Handlebar levers are positioned inwards for smaller hands. Original brake and clutch lever can be adjusted.
- 3: Ergo-Fit The Easy Reach seat moves you forward ± 50mm Additionally, the slimmer tapered seat profile allows the rider to reach the ground better.
- Tie-rod, 180 mm - 391110336
- Easy Reach Handlebar black with grip - 999940827
- Easy Reach Rider Seat - 999941559
ERGO-FIT™ Extended Reach Kit
ERGO-FIT™ Extended Reach.
Suggested for riders taller than 183cm.
Adjustable factory components and Ergo-Fit extended reach accessories give you comfort and confidence with more room to stretch out and enjoy your ride.
- 1: Ergo-Fit 3 position footpegs can be adjusted 25mm forward with longer accessory tie rod, for more legroom.
- 2: Ergo-Fit Original handlebar levers (brake&clutch) can be positioned farther away from the body for riders with larger hands.
- 3: Ergo-Fit The extended reach gel front seat's hip support is moved back 25mm providing more room for the rider. Must be combined with matching rear seat.
- Tie-rod, 230 mm - 391110335
- Extended Reach Rider Seat - K53001251C
- Extended Passenger Seat, with Bracket - K53001252C
ERGO-FIT™ Comfort Passenger Seat
Comfortable extended reach rear seat designed to be combined with extended reach front seat.
Front section is adapted to create more room for rider.
Padding is thicker for increased comfort. Including bracket.
Extended reach front seat must be combined with extended reach rear seat
Universal GPS Kit
The universal GPS package allows various installation options without using additional accessories. Navigation system can be mounted in the bag, or directly to the system without bag. Mounting on mirror or handlebar (22,28-25,4mm), or to other mounting points with ball M6 or M8 and rotatable RAM-Arm. Splash proof navigation bag size M protects your GPS from the weather.
Included:
- Clamps with rubber insert adapters
- Ball M8 and adapter for ball M6
- Mirror thread GPS-Mount
- RAM-Arm (8 cm)
- Universal Mount
- NAVi-Bag M (15 x 10 x 4 cm)
- Mounting material
Relay Kit
Relay kit for Vulcan S lightbar/sub lamp, 12V outlet, Gear position indicator or other electrical accessories.
Relay is needed only one time when multiple electrical accessories are fitted. (Only one Relay Kit required per Vulcan S)
Medium Clear Windscreen for improved wind protection. Height 47 cm (effective 36 cm), width 39 cm.
Requires separately sold windscreen bracket set (Anthracite/Black) - 999940526B and front fork bracket set (Chrome) - 999940546 .
Medium height windscreen for improved comfort and wind protection.
- Requires Windscreen Bracket and Windscreen Fork Bracket, sold separately
- Height = 47cm (effective = 36cm), Width = 39cm
KQR Windshield Fork Bracket Kit
Windshield Large (Quick Release)
This 3 part Kawasaki Quick Release (KQR™) windshield kit with lock allows for easy installation or removal of windshield once installed.
KQR™ Fork windshield bracket kit with durable chrome finish.
This windshield mounting system can be fitted to the front fork without removing fork legs.
The stainless steel windshield bracket with lock and keys is a required component to mount KQR™ windshields.
Anthracite/Black finish.
Windshiel
Leather Saddlebag Set
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike. This black leather saddlebag set has reinforcements to keep the shape in all riding conditions. Quick release system inside the bag allows bags to be removed from the support easily without tools. Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected. A magnetic clasp closure on the lid makes accessing your goods convenient. KQR™ mounting system allows for easy installation of KQR™ Saddlebags once installed. (Load 2. 2kg per bag , Inner dimensions: H26 x L33 x D 13cm) Requires KQR™ bracket kit and saddlebag supports (sold separately)

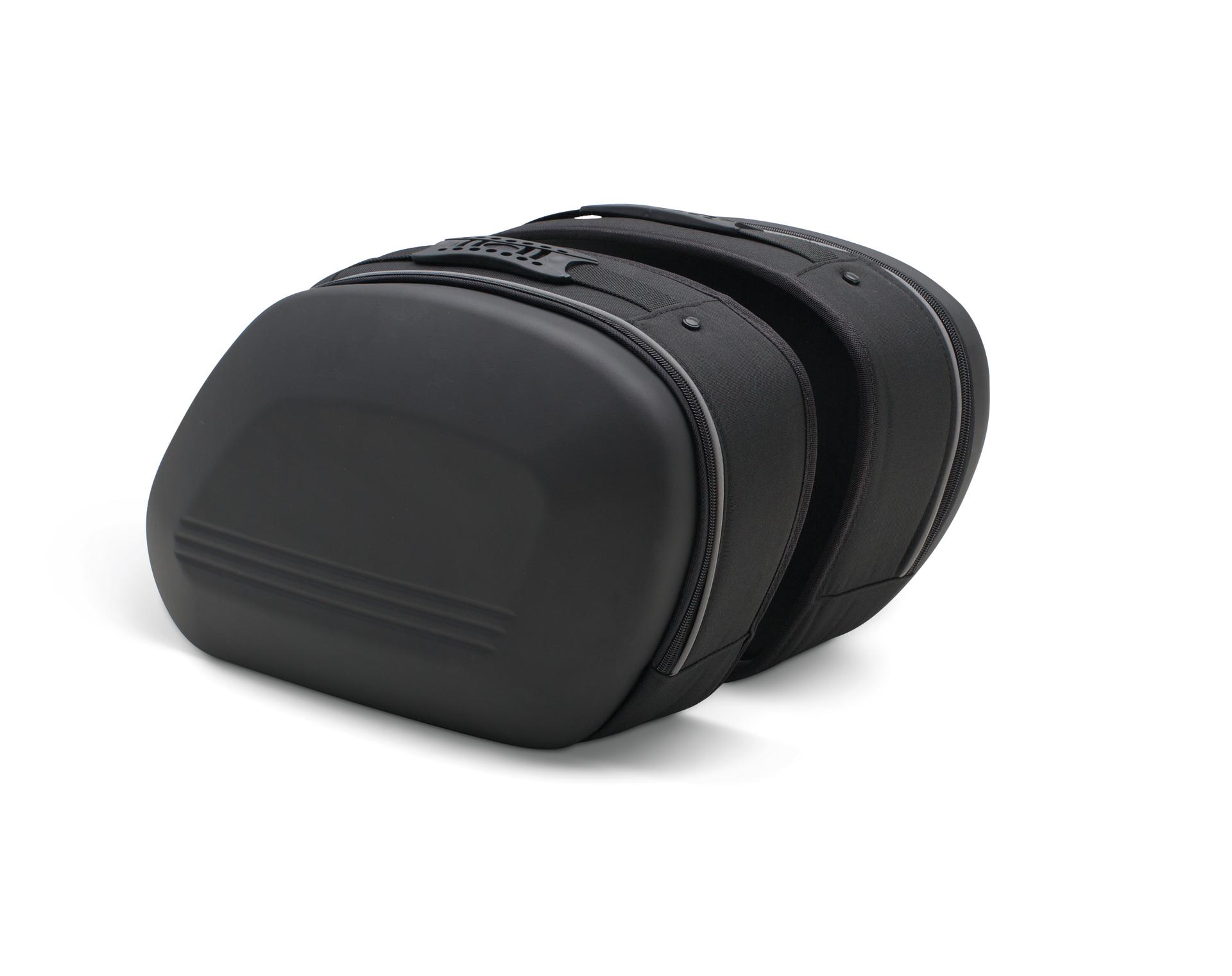

Stylish and rugged water-resistant nylon saddlebags. Reinforced molded foam body helps maintain shape even when empty.
Features integrated handgrips, zippered lids, and reflective piping.
Includes a set of two waterproof liners to protect cargo in wet weather.
Capacity: 2 × 11 L. Maximum load: 2 kg per bag.
Dimensions: L = 48 cm, H = 28 cm, W = 16 cm (19" × 11" × 6 1/2").
Requires Saddlebag Support Brackets with optional KQR Bracket Kit, both sold seperately.
Large Clear Windscreen
Height = 54 cm (effective = 43 cm), width = 45 cm
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest.
Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
- All required hardware included
- 20cm (8") long and 23cm (9") wide
- Compatible with the fixed Passenger Backrest

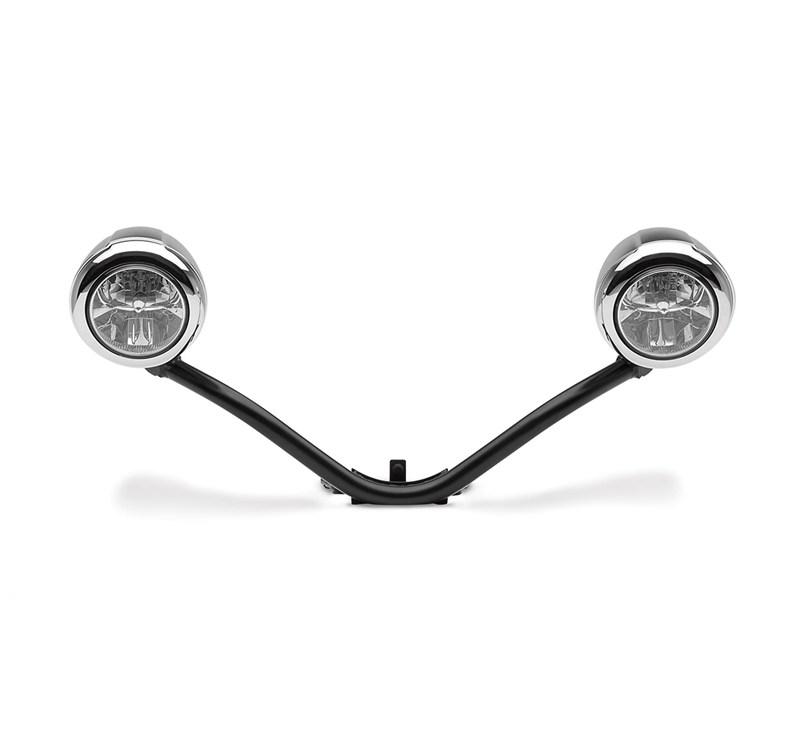

Metal bracket with LED spotlamps with low power consumption. For increased visibility. Bar available in black. (Requires additional relay)
Phone Mount Kit SP Connect+
Developed in conjuction wih SP Connect the kit consists of a Clutch Mount, Anti-vibration module and a Universal Phone Clamp. Suits mosts mobile phones; Simply pull out the crown, screw it tight, and then push the crown back in to lock your phone in place. While remaining fully operable, your phone can now be attached to or detached from the mount in seconds.
TomTom Rider 550
Discover your next adventure
Ride challenge level. Plan windy and hilly roads
Discover the world's best curated riding routes, exclusively
Updates via Wi-Fi®. No computer needed
Discover, personalize and enjoy stunning riding routes with MyDrive
Compatible with Siri and Google Now™
Smartphone messages read aloud, hands-free calling
Lifetime* Worldwide Maps, TomTom Traffic and Services
Double the processing speed and five times faster start-up
Mechanics Carpet (Pit Mat), 100cm x 200cm
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
- Size 100cm x 200cm
- Pile weight ± 300 gr/m²,
- Total height ± 5 mm,
- 30°C washable (no tumble-dry)
- Arrow Full System Exhaust (Euro 5+)
- Café Style Windscreen Kit
- Arrow Full System Exhaust (Euro 5+)
- KQR Bracket Kit, Chrome
- KQR Saddlebag Kit
- Saddlebag Kit
- Large Windscreen Kit
- Medium Windscreen Kit
- Large KQR Windscreen Kit
- Medium KQR Windscreen Kit
- Saddlebag Support Set
- KQR Bracket Kit, Black
- KQR Passenger Backrest, Chrome
- Passenger Backrest
- Solo Luggage Rack, Black
- KQR Passenger Backrest, Black
- 18-21L Rear Bag
- Tank Bag
- Extended Reach Tie Rod, 230mm
- Luggage Rack Kit
- Lightbar Kit
- ERGO-FIT™ Reduced Reach Kit
- ERGO-FIT™ Extended Reach Kit
- Wheel Rim Tape Set, Green
- Chrome Handlebar
- Easy Reach Chrome Handlebar
- Tie rod, short
- Centre cap for clutch cover plate
- Easy Reach Handlebar with Grip (36mm closer)
- ERGO-FIT™ Comfort Rider Seat (+25mm)
- ERGO-FIT™ Comfort Passenger Seat
- One-Key System Helmet Lock
- ERGO-FIT™ Low Rider Seat (-5mm)
- Chrome Handlebar Ends
- Dc socket (12v outlet) (relay 999940510 required)
- Universal GPS Kit
- Clutch Cover Plate, Chrome
- Wheel Rim Tape Set, Silver
- Relay Kit
- KQR Windshield Bracket Kit, Black
- Windscreen Mounting Bracket
- Large Clear Windscreen
- Windscreen Fork Bracket
- KQR Windshield Fork Bracket Kit
- Café Style Smoke Windscreen
- Leather Saddlebag Set
- Café Style Windscreen
- Bobbin Set with Protector M10
- Outdoor Cover - Large
- GPS Bracket Adapter Kit for TomTom 400 Series (4xx)
- Outdoor Cover - Medium
- Phone Mount Kit SP Connect+
- TomTom Rider 550
- Mechanics Carpet (Pit Mat), 100cm x 200cm
- Bobbin Set with Protectors M8
